If you need help sizing a pump station, you can use our no obligation quote request form
Key features
One metre width polyethylene tank
Choice of tank depth; 1.5m (1,175 litre capacity) and 2.0m (1,550 litre capacity)
2 inch or 2½ inch discharge, supplied with internal pipework and finished with tank connector for connection to external discharge pipework
Non return valve and gate valve fitted into internal pipework
Freestanding 230v submersible pumps with up to 80mm free solids passage
Up to 966 litre per minute flow rate and up to 9.7m lift (please note the pump can be upgraded to suit requirements, ask for details)
Automatic operation – control panel provided as standard
Supplied with two 110mm seals for inlet holes to be cut on site, additional inlet seals available on request
Optional manhole cover and kiosk available
Downloads
Installation Guidelines (.pdf)
AES Packaged Pumping Stations (.pdf)
Specifications
Discharge size |
2 inch |
Tank depth |
1.5m or 2.0m |
Tank width |
1.0m |
Sump capacity |
1,175 litre or 1,550 litre |
Tank material |
Polyethylene |
Flowrate Max. |
420 litres/per min |
Head Max |
9.7m |
Power |
0.55 kW |
Speed |
2900 RPM |
Impeller Type |
Vortex |
Free passage |
50mm |
Pumped medium |
Sewage / dirty water |
Pump cable length |
10m |
Pump voltage |
230V |
Pumping Distrance Max. |
Dependent on head pumped |
Internal pipework |
2 inch |
Discharge outlet |
2 inch male BSP |
Discharge pipe |
63mm MDPE |
Tank Use |
Below Ground |
Control panel |
Included |
Discharge size |
2½ inch |
Tank depth |
1.5m or 2.0m |
Tank width |
1.0m |
Sump capacity |
1,175 litre or 1,550 litre |
Tank material |
Polyethylene |
Flowrate Max. |
570 litres/per min |
Head Max |
8.6m |
Power |
2.2 kW |
Speed |
2900 RPM |
Impeller Type |
Vortex |
Free passage |
60mm |
Pumped medium |
Sewage / dirty water |
Pump cable length |
10m |
Pump voltage |
230V |
Pumping Distrance Max. |
Dependent on head pumped |
Internal pipework |
2½ inch |
Discharge outlet |
2½ inch male BSP |
Discharge pipe |
75mm MDPE |
Tank Use |
Below Ground |
Control panel |
Included |

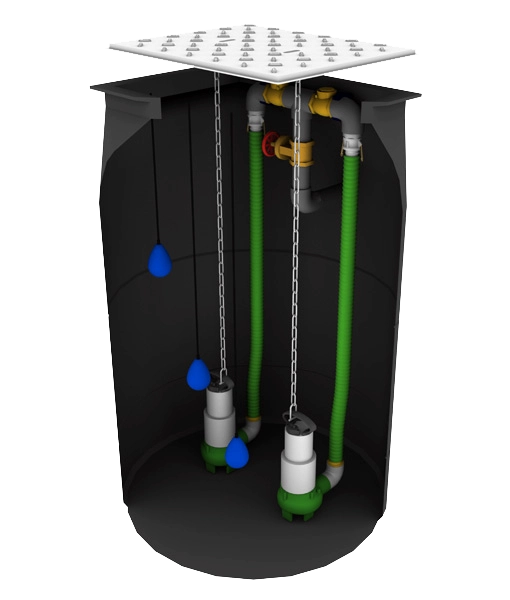

Number of Pumps |
2 (Freestanding) |
Internal Pipework |
Flexible Pipework |
Non-return Valves |
2 |
Gate Valves |
1 |
Float Switches |
3/4 |
Float Switch Bracket |
Included |
Control Panel with Alarm |
✓ |
110mm Inlet Pipe Seals |
2 |
Manhole Cover |
Optional |
Kiosk |
Optional |
MDPE Pipe |
Optional |
Compression Fitting |
Optional |
