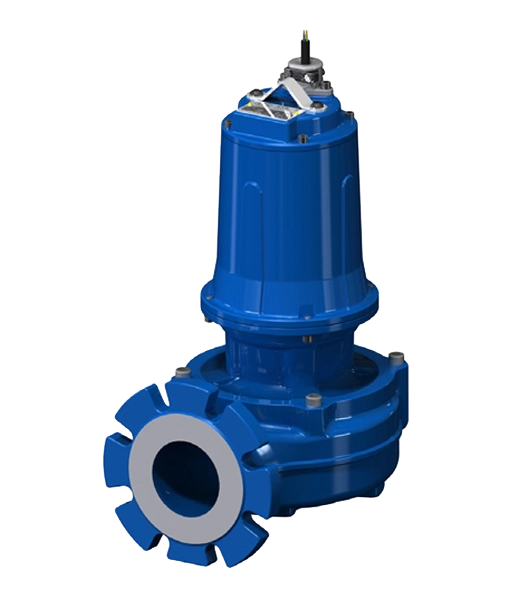

The HV DN80 from AF Pumps features tough construction and a vortex impeller, the DN80 flange gives wide through sections, with up to 70mm free passage offering reliability against clogging and good resistance to wear.
HV pumps are particularly suited to pumping clear and waste water including sewage, containing solids, fibrous solids and sludge.
The single phase model is available with manual or automatic operation, the three phase model has manual operation and features Klixon and water in oil chamber alarm outputs. There are also three phase direct start (D) and Star Delta (S) versions available.
The HV has a horizontal DN80 flanged discharge, an optional claw can be fitted for use on guide rails, the maximum flow rate is 1,900 litres per minute, and the maximum head is 24m.
AF Pumps are sold exclusively by Automated Environmental Systems in the UK.
Maximum flow 1,900 litres per minute, maximum head 24m
DN80 discharge offers reliability against clogging
Vortex impeller
Free passage up to 70mm
230v manual or automatic operation and 400v manual operation
Three phase models feature Klixon and water in oil chamber alarm outputs
Three phase models with Direct Start (D) and Star Delta (S)
Maximum temperature of pumped fluid 40°C
PH of pumped fluid 6-10
Optional kit for mounting on guide rail systems
Flowrate Max. |
710 L/min |
Head Max. |
8m |
Impeller Type |
Vortex |
Horse Power |
2.0 HP |
Power |
1.5 kW |
Voltage |
230V / 400V |
Water Level Max. |
20m |
Operation |
Manual (M)(T) Auto (MG) |
Motor Speed |
2850 RPM |
Discharge Size |
DN80 |
Free Passage |
65mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
42 Kg |
Dimensions (H x W x L) |
518mm x 227mm x 305mm |
Flowrate Max. |
920 L/min |
Head Max. |
12m |
Impeller Type |
Vortex |
Horse Power |
3.0 HP |
Power |
2.2 kW |
Voltage |
400V |
Water Level Max. |
20m |
Operation |
Manual (T) |
Motor Speed |
2850 RPM |
Discharge Size |
DN80 |
Free Passage |
65mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
44 Kg |
Dimensions (H x W x L) |
518mm x 227mm x 305mm |
Flowrate Max. |
1,150 L/min |
Head Max. |
18m |
Impeller Type |
Vortex |
Horse Power |
4.0 HP |
Power |
3.0 kW |
Voltage |
400V |
Water Level Max. |
20m |
Operation |
Manual |
Motor Speed |
2850 RPM |
Discharge Size |
DN80 |
Free Passage |
65mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
61 Kg |
Dimensions (H x W x L) |
595mm x 227mm x 305mm |
Flowrate Max. |
1,320 L/min |
Head Max. |
20m |
Impeller Type |
Vortex |
Horse Power |
5.5 HP |
Power |
4.1 kW |
Voltage |
400V |
Water Level Max. |
20m |
Operation |
Manual |
Motor Speed |
2850 RPM |
Discharge Size |
DN80 |
Free Passage |
65mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
63 Kg |
Dimensions (H x W x L) |
595mm x 227mm x 305mm |
Flowrate Max. |
1,730 L/min |
Head Max. |
22m |
Impeller Type |
Vortex |
Horse Power |
7.5 HP |
Power |
5.5 kW |
Voltage |
400V (D) 400V/690V (S) |
Water Level Max. |
20m |
Operation |
Manual |
Motor Speed |
2850 RPM |
Discharge Size |
DN80 |
Free Passage |
70mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
85 Kg |
Dimensions (H x W x L) |
730mm x 240mm x 390mm |
Flowrate Max. |
1,900 L/min |
Head Max. |
24m |
Impeller Type |
Vortex |
Horse Power |
7.5 HP |
Power |
5.5 kW |
Voltage |
400V (D) 400V/690V (S) |
Water Level Max. |
20m |
Operation |
Manual |
Motor Speed |
2850 RPM |
Discharge Size |
DN80 |
Free Passage |
70mm |
Pumped Medium |
Waste water & sewage |
Cable Length |
10m |
Construction |
Cast iron |
Weight |
91 Kg |
Dimensions (H x W x L) |
730mm x 240mm x 390mm |
Motor housing Cast iron GG 25
Shaft stainless steel AISI 420
Electric cable neoprene H07RN8-F with free therminals
Bolt A2 class AISI 304
O’ring nitrile
Shaft sealing by two mechanical seals mounted in series in ecologic oil chamber
Seal types applied to the motor side on ceramic/graphite and seal types applied to the wet end side on silicon carbide
Motor asynchronous 2 poles on three-phase squirrel cage type in dielectric anti-oxide oil bath
Protection IP 68 and insulation class F
