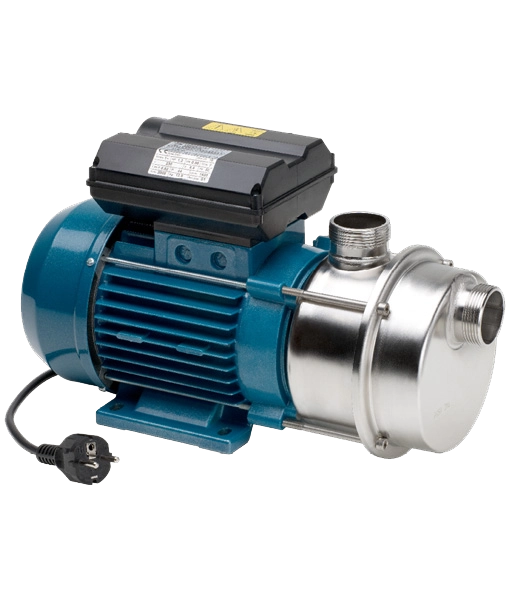

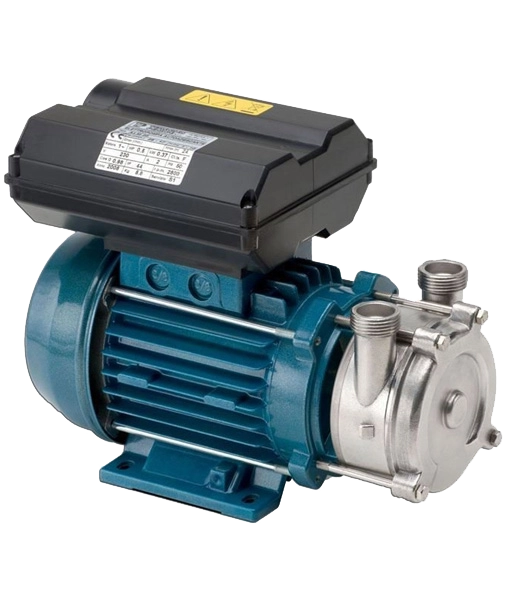

The Tellarini AL self-priming reversible pump series is a range of liquid ring pumps with capacities from 20 to 200 litres per minute, and are suitable for corrosive liquids.
The compact structure of the pump body avoids contact between the liquid and the motor. The ALM (single phase) and ALT (three phase) can be used for professional applications such as agriculture, oenology, marine, chemical and food industries.
The AL series are able to pump clean liquid without particles including chemical agents, fertilising fluids, sea water and food fluids (milk, wine, oil and fruit juices).
Downloads
Specifications (.pdf)
Manual (.pdf)
Specifications
20
Flowrate Max. |
28 L/min |
Maximum Head |
24m |
Power |
0.5 HP |
Voltage |
230v / 400v |
Water Temp Max. |
90°C |
Construction |
Stainless steel |
Discharge Size |
¾ inch |
Suction Size |
¾ inch |
Speed |
2800 RPM |
Pumped Medium |
Water, seawater, diesel |
Weight |
5.9 Kg |
Dimensions (H x W x L) |
190mm x 120mm x 248mm |
25
Flowrate Max. |
43 L/min |
Maximum Head |
12m |
Power |
0.6 HP |
Voltage |
230v / 400v |
Water Temp Max. |
90°C |
Construction |
Stainless steel |
Discharge Size |
1 inch |
Suction Size |
1 inch |
Speed |
1400 RPM |
Pumped Medium |
Water, seawater, diesel |
Weight |
9.0 Kg |
Dimensions (H x W x L) |
189mm x 144mm x 317mm |
30
Flowrate Max. |
89 L/min |
Maximum Head |
42m |
Power |
2.0 HP |
Voltage |
230v / 400v |
Water Temp Max. |
90°C |
Construction |
Stainless steel |
Discharge Size |
1 inch |
Suction Size |
1 inch |
Speed |
2800 RPM |
Pumped Medium |
Water, seawater, diesel |
Weight |
13.3 Kg |
Dimensions (H x W x L) |
208mm x 144mm x 317mm |
40
Flowrate Max. |
137 L/min |
Maximum Head |
17m |
Power |
1.2 HP |
Voltage |
230v / 400v |
Water Temp Max. |
90°C |
Construction |
Stainless steel |
Discharge Size |
1½ inch |
Suction Size |
1½ inch |
Speed |
1400 RPM |
Pumped Medium |
Water, seawater, diesel |
Weight |
13.9 Kg |
Dimensions (H x W x L) |
208mm x 160mm x 347mm |
50
Flowrate Max. |
205 L/min |
Maximum Head |
29m |
Power |
2.0 HP |
Voltage |
230v / 400v |
Water Temp Max. |
90°C |
Construction |
Stainless steel |
Discharge Size |
2 inch |
Suction Size |
2 inch |
Speed |
1400 RPM |
Pumped Medium |
Water, seawater, diesel |
Weight |
19.8 Kg |
Dimensions (H x W x L) |
237mm x 200mm x 382mm |
Technical data
Maximum flow 12 m³/h, maximum head 42 metres
Six metre priming height
Possible to reverse the flow
Asynchronous single-phase (ALM) or three-phase (ALT) motor, protection IP 44, with professional switch reverser and cable
Continuous duty
Maximum temperature 90°C (130°C with Viton seals)
Pump body, impeller and shaft manufactured from AISI 316 Stainless Steel, mechanical seal from ceramic/graphite and NBR
