The Sulzer ABS Piranha S Series Submersible Grinder Pump with shredding action contains the most effective cutting system for use in pressure sewer systems. The Piranha pumps have proven themselves to be one of the market’s best ongoing performers, having excellent total lifecycle costs from initial purchase through ongoing operation.
Sulzer ABS Piranha S pumps provide a means of effective and economical wastewater transport utilising small-diameter discharge pipes as opposed to larger diameter pipes required for gravity systems.
The ABS Piranha S is equipped with a water-tight, fully encapsulated, flood-proof motor. The pump and motor section form a compact unit, providing an economical, yet robust solution without compromising on the reliable design.
Key features
Piranha cutting system provides optimum, blockage-free operation
Unique shredding system capable of shredding items such as cloths and plastic bags
Efficient pumping of wastewater containing sewage and offal, as well as organic and industrial effluent
Suitable for private residences and community subdivisions, municipal wastewater transport, commercial wastewater handling of domestic sewage in business parks, restaurants, hospitals, industrial areas, etc., industrial wastewater handling of industrial areas, slaughter houses, food processing plants, paper mills, agricultural applications, etc.
Hazardous locations requiring certification in accordance with ATEX (EX II 2 G k Ex d IIB T4)
Single-phase fitted with Schuko plug; three-phase with CEE plug
High quality silicon carbide (SiC/SiC) mechanical seal
Motor-side sealing provided by an oil lubricated lip seal arrangement
Small diameter discharge – DN32 (G 1¼” threaded adaptor available as accessory)
Explosion proof (optional) -in accordance with international standard ATEX II 2G Ex db IIB T4 Gb
Piranha S has been designed for intermittent use only (S3, 25%) when dry-installed, and continuous use (S1) when submerged
Insulation class F, protection type IP 68, Ex and non-Ex
Thermal sensors
Stainless steel rotor shaft supported in lubricated-for-life heavy duty ball bearings
Adjustable bottom plate – the optimum clearance between the bottom plate and the impeller can easily be adjusted
Piranha cutter
The Piranha S series cutter system features a completely different concept in grinder pump design, The design consists of a lobed rotor cutting element attached to a centrifugal impeller working in tandem with a stationary cutting element fastened to a spiral-grooved bottom plate.
The lobed rotor turns inside the stationary cutter designed with wave-shaped castellations. The number of waves is one less than the number of lobes on the rotor. This causes an opening to be formed between the rotor and stationary cutter.
The normal pumping action of the impeller causes water and solids to flow into the cutting elements and as the solids are sheared into small particles, they are pumped by the impeller into the discharge pipe. Should any of the finely cut particles try to wedge between the impeller and bottom plate, the outward threaded spiral grooves will move them to the discharge.
The Sulzer ABS Piranha S Series Submersible Grinder Pump with shredding action contains the most effective cutting system for use in pressure sewer systems. The Piranha pumps have proven themselves to be one of the market’s best ongoing performers, having excellent total lifecycle costs from initial purchase through ongoing operation.
Sulzer ABS Piranha S pumps provide a means of effective and economical wastewater transport utilising small-diameter discharge pipes as opposed to larger diameter pipes required for gravity systems.
The ABS Piranha S is equipped with a water-tight, fully encapsulated, flood-proof motor. The pump and motor section form a compact unit, providing an economical, yet robust solution without compromising on the reliable design.

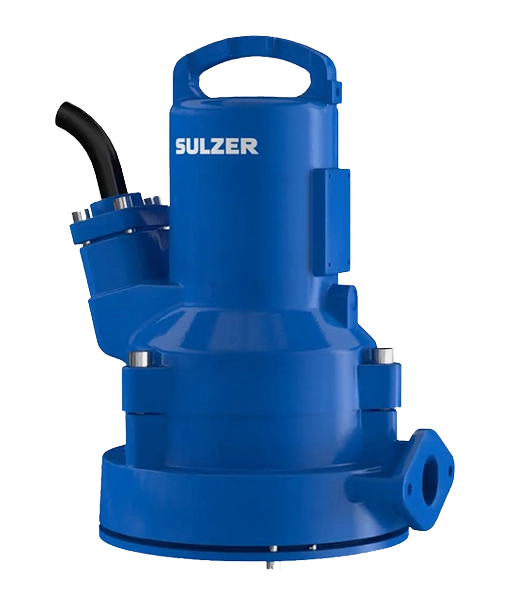

Sulzer ABS Piranha S Series Submersible Grinder Pump
