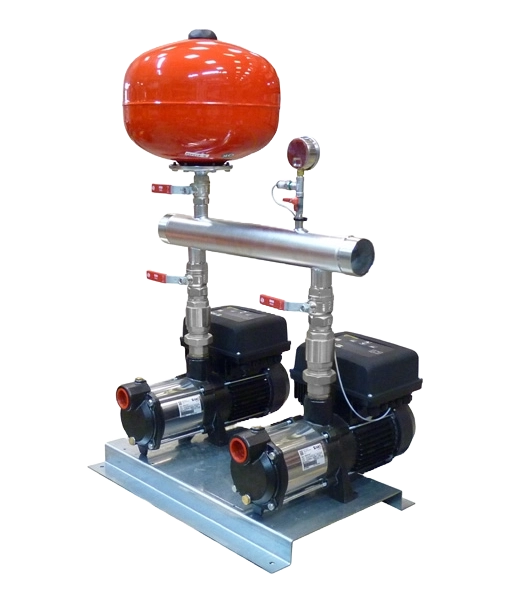

Saci E-Motion Sigma Twin Cold Water Booster Set
Saci Sigma Multistage Pump with Stainless Steel Impellers
Saci E-Motion Sigma Twin Cold Water Booster Set
Saci Sigma Multistage Pump with Stainless Steel Impellers
Product code: 31383 Category: Tag: View more products from...

Overview

The Saci E-Motion Sigma Twin Pump Cold Water Booster Set delivers constant, reliable water pressure by adapting to demand in real time. Rather than running continuously at full capacity, its advanced frequency inverter automatically adjusts the pump speed to match usage, significantly lowering energy costs and reducing system noise.

Engineered for safe, hands off operation, the unit includes built-in dry run protection to prevent motor damage and shuts down automatically if pressure limits are exceeded. Commissioning is exceptionally straightforward, requiring only your target pressure and pump rotation setup to get started.

Details

Saci Sigma Cold Water Booster Sets are suitable for clean water pressure boosting applications such as flats, homes with multiple floors or bathrooms, irrigation, commercial units, hotels, sport centres and industry.

The Saci Sigma multistage pump with stainless steel impellers is a horizontal pump with high output and extremely quiet operation making it ideal for domestic and industrial pressurising systems.

The Sigma pump housing and impellers are constructed from stainless steel AISI 304, with the shaft in stainless steel AISI 420 and diffusers injected with fibreglass.

The inlet and outlet body is in cast iron GG-20 with internal and external rust proofing paint. The mechanical seal is graphite ceramic and stainless steel AISI 304.

The motor on the Sigma is a standard asynchronous motor, sealed from external ventilation and suitable for continuous operation. The motor has IP 55 protection and class F isolation.

The motor on the Sigma is suitable to work through frequency inverters.

Highlights

Constant water pressure maintained automatically regardless of fluctuating demand

Variable speed frequency inverter control reduces power consumption and ensures quiet operation

Comprehensive safety protection against dry running, overcurrent, overpressure, and voltage drops

Simple setup requiring only the target pressure and pump rotation to configure the system

Intelligent LCD display for real-time tracking, full incident history, and password protected advanced settings

High performance capability offering up to 350 litres per minute flow and a maximum head of up to 46 metres (per pump)

Available in single and three phase options to suit most applications

Specifications

Pump orientation
 Horizontal
Max Flow
 183 L/min
Max Head
 39m
Power
 0.9 kW / 1.2 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
[/tab]
Pump orientation
 Horizontal
Max Flow
 183 L/min
Max Head
 51m
Power
 1.1 kW / 1.5 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
Pump orientation
 Horizontal
Max Flow
 183 L/min
Max Head
 65m
Power
 1.5 kW / 2.0 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
Pump orientation
 Horizontal
Max Flow
 183 L/min
Max Head
 77m
Power
 2.2 kW / 3.0 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
Pump orientation
 Horizontal
Max Flow
 183 L/min
Max Head
 90m
Power
 2.2 kW / 3.0 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
Pump orientation
 Horizontal
Max Flow
 350 L/min
Max Head
 35m
Power
 1.5 kW / 2.0 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
Pump orientation
 Horizontal
Max Flow
 350 L/min
Max Head
 46m
Power
 2.2 kW / 3.0 HP
Voltage
 230V
Suction
 1¼ inch
Discharge
 1¼ inch
