Roxy Submersible Stainless Steel Multistage Pump
Roxy Submersible Stainless Steel Multistage Pump
Roxy Submersible Stainless Steel Multistage Pump
Roxy Submersible Stainless Steel Multistage Pump
Product code: 92607 Category:

Overview

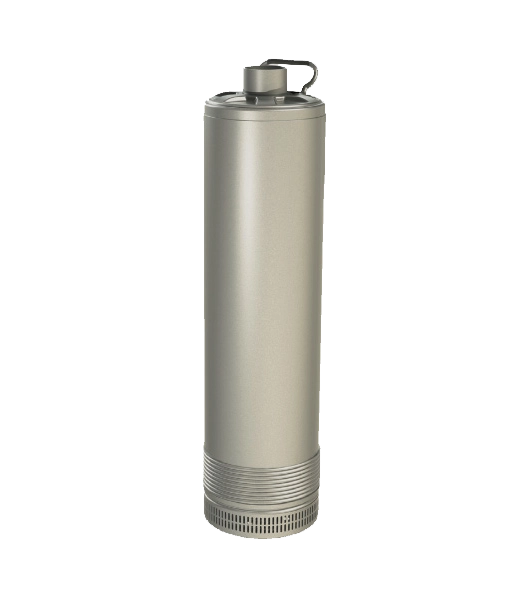

The Roxy is a 5 inch submersible stainless steel single block multistage pump and can be used for lifting clear water from boreholes, tanks or wells and is capable of distributing pressurised water to your house, small agricultural plant, or sprinkler system for lawns and gardens.

Available in two versions, both pumps can lift up to 90 litres a minute, the Roxy 100 has a maximum head of 45m and the Roxy 160 has a maximum head of 73m, both pumps come complete with 20m H07RNF cables and a control box with external capacitor and switch.

The Roxy has a stainless steel case and is suitable for use with clean water that is free of solids and abrasives. Both models are single phase (230v), the Roxy 100 has automatic operation and the Roxy 160 is available with manual or automatic operation.

Key features

5 inch multistage submersible pumps with outer casing in stainless steel

Cooling of the pump is ensured by oil bath motor

The impellers, diffusers and diffuser plates are made of Tecnopolymer

Motor shaft made of AISI 420, with graphite alumina mechanical seal on the pump side and NBR sealing ring on the motor side

Pumps designed for pumping clean, non-aggressive water free of solid bodies or fibres

Pumps supplied with 20 metres of H07RN-F rubber cable

Control box with capacitor and switch included

Automatic version with float switch

Downloads

Technical data

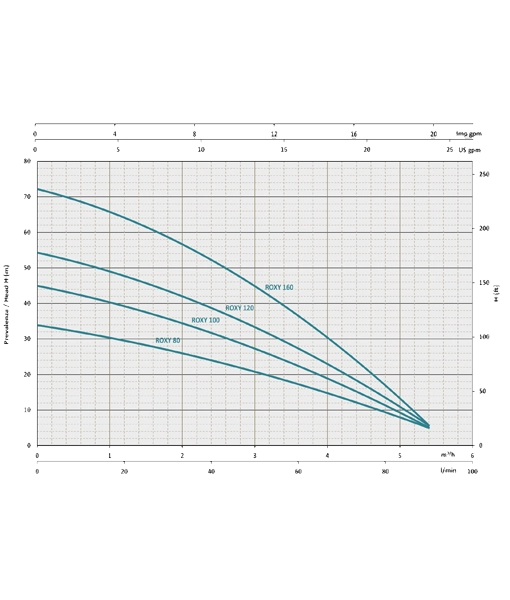

Operating range: from 0.6 to 5.4 m³/h with head up to 73 metres

Pumped liquid: clean, free of solids and abrasives, non-aggressive

Max. temperature: +35°C

Max. immersion depth: 20m

Discharge port diameter: 1¼ inch

Motor protection class: IP68

Motor protection rating: F

Built-in thermal protection and plastic casing power supply box with capacitor and switch

Installation: in wells, tanks and cisterns, vertical position

Product code: 92607 Category:

Roxy Submersible Stainless Steel Multistage Pump

Roxy Submersible Stainless Steel Multistage Pump
Roxy Submersible Stainless Steel Multistage Pump
Roxy Submersible Stainless Steel Multistage Pump
Roxy Submersible Stainless Steel Multistage Pump
Product code: 92607 Category:

Overview

The Roxy is a 5 inch submersible stainless steel single block multistage pump and can be used for lifting clear water from boreholes, tanks or wells and is capable of distributing pressurised water to your house, small agricultural plant, or sprinkler system for lawns and gardens.

Available in two versions, both pumps can lift up to 90 litres a minute, the Roxy 100 has a maximum head of 45m and the Roxy 160 has a maximum head of 73m, both pumps come complete with 20m H07RNF cables and a control box with external capacitor and switch.

The Roxy has a stainless steel case and is suitable for use with clean water that is free of solids and abrasives. Both models are single phase (230v), the Roxy 100 has automatic operation and the Roxy 160 is available with manual or automatic operation.

Product code: 92607 Category:

Roxy Submersible Stainless Steel Multistage Pump

Product code: 92607 Category:

Roxy Submersible Stainless Steel Multistage Pump

Payment methods we accept

We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers

Next working day delivery availableIn-stock items, order by 2pm Mon to Fri

Payment methods we accept

We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers

Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri

Product code: 92607 Category:

Overview

The Roxy is a 5 inch submersible stainless steel single block multistage pump and can be used for lifting clear water from boreholes, tanks or wells and is capable of distributing pressurised water to your house, small agricultural plant, or sprinkler system for lawns and gardens.

Available in two versions, both pumps can lift up to 90 litres a minute, the Roxy 100 has a maximum head of 45m and the Roxy 160 has a maximum head of 73m, both pumps come complete with 20m H07RNF cables and a control box with external capacitor and switch.

The Roxy has a stainless steel case and is suitable for use with clean water that is free of solids and abrasives. Both models are single phase (230v), the Roxy 100 has automatic operation and the Roxy 160 is available with manual or automatic operation.

Key features

5 inch multistage submersible pumps with outer casing in stainless steel

Cooling of the pump is ensured by oil bath motor

The impellers, diffusers and diffuser plates are made of Tecnopolymer

Motor shaft made of AISI 420, with graphite alumina mechanical seal on the pump side and NBR sealing ring on the motor side

Pumps designed for pumping clean, non-aggressive water free of solid bodies or fibres

Pumps supplied with 20 metres of H07RN-F rubber cable

Control box with capacitor and switch included

Automatic version with float switch

Downloads

Technical data

Operating range: from 0.6 to 5.4 m³/h with head up to 73 metres

Pumped liquid: clean, free of solids and abrasives, non-aggressive

Max. temperature: +35°C

Max. immersion depth: 20m

Discharge port diameter: 1¼ inch

Motor protection class: IP68

Motor protection rating: F

Built-in thermal protection and plastic casing power supply box with capacitor and switch

Installation: in wells, tanks and cisterns, vertical position

Key features

5 inch multistage submersible pumps with outer casing in stainless steel

Cooling of the pump is ensured by oil bath motor

The impellers, diffusers and diffuser plates are made of Tecnopolymer

Motor shaft made of AISI 420, with graphite alumina mechanical seal on the pump side and NBR sealing ring on the motor side

Pumps designed for pumping clean, non-aggressive water free of solid bodies or fibres

Pumps supplied with 20 metres of H07RN-F rubber cable

Control box with capacitor and switch included

Automatic version with float switch

Downloads

Technical data

Operating range: from 0.6 to 5.4 m³/h with head up to 73 metres

Pumped liquid: clean, free of solids and abrasives, non-aggressive

Max. temperature: +35°C

Max. immersion depth: 20m

Discharge port diameter: 1¼ inch

Motor protection class: IP68

Motor protection rating: F

Built-in thermal protection and plastic casing power supply box with capacitor and switch

Installation: in wells, tanks and cisterns, vertical position
