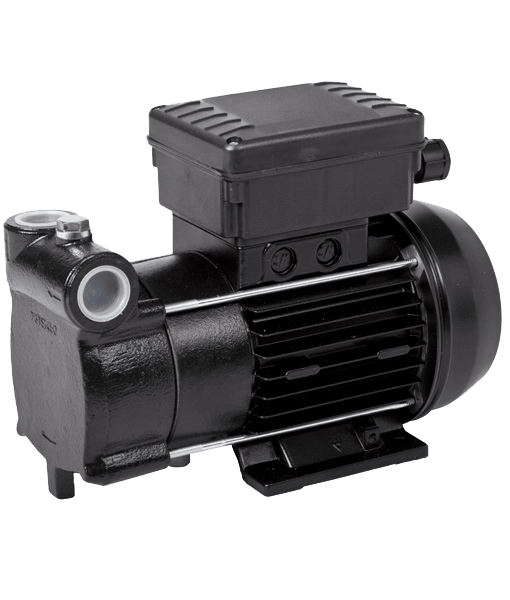

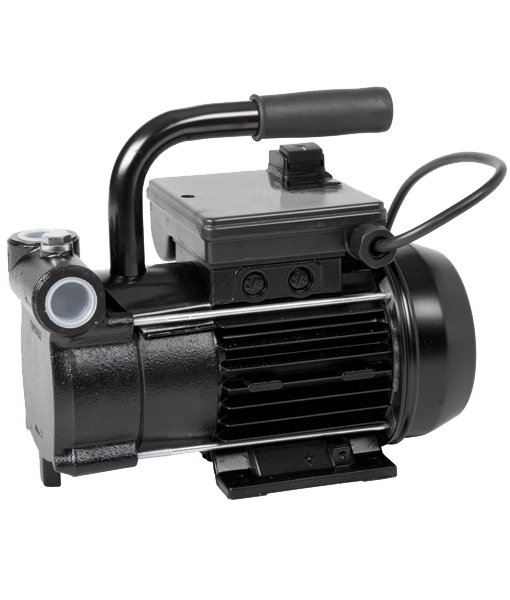

The Pentair PGA diesel transfer pump is a self-priming liquid ring pump that is particularly suitable for diesel transfer. The Pentair PGA is a direct replacement for the Nocchi PGA.
The PGA pump has a cast iron casing and motor bracket with a brass finned impeller. The mechanical seal is graphite with a ceramic counter face.
The maximum liquid temperature is 50°C and the pump has a recommended suction height of 5 metres with foot valve.
Applications include manufacture of delivery assemblies, for farm diesel transfer, farm machines, small pumping stations
Type of liquid: diesel
Maximum liquid temperature 50°C
Maximum recommended suction height 5m with foot valve
Maximum operating pressure 6 bar
Suitable for continuous use
Flowrate Max. |
40 L/min |
Maximum Head |
30m |
Power |
0.65 kW |
Voltage |
230v / 110v |
Water Temp Max. |
50°C |
Construction |
Cast iron |
Discharge Size |
¾ inch |
Suction Size |
¾ inch |
Speed |
2850 RPM |
Pumped Medium |
Diesel |
Weight |
6.2 Kg |
Dimensions (H x W x L) |
141mm x 120mm x 255mm |
Flowrate Max. |
60 L/min |
Maximum Head |
40m |
Power |
0.80 kW |
Voltage |
230v |
Water Temp Max. |
50°C |
Construction |
Cast iron |
Discharge Size |
¾ inch |
Suction Size |
¾ inch |
Speed |
2850 RPM |
Pumped Medium |
Diesel |
Weight |
8.6 Kg |
Dimensions (H x W x L) |
148mm x 120mm x 260mm |
Flowrate Max. |
60 L/min |
Maximum Head |
40m |
Power |
0.90 kW |
Voltage |
400v |
Water Temp Max. |
50°C |
Construction |
Cast iron |
Discharge Size |
¾ inch |
Suction Size |
¾ inch |
Speed |
2850 RPM |
Pumped Medium |
Diesel |
Weight |
8.0 Kg |
Dimensions (H x W x L) |
148mm x 120mm x 260mm |
Enclosed, externally ventilated motor
Level of protection IP44, Class F insulation
Single phase power supply with capacitor permanently activated and thermal protection built into the motor winding
Three phase power supply with external protection provided by the user
Pump casing and motor bracket in EN GJL 200 (ex G20) Cast iron
Mechanical seal in graphite
Finned impeller in brass
