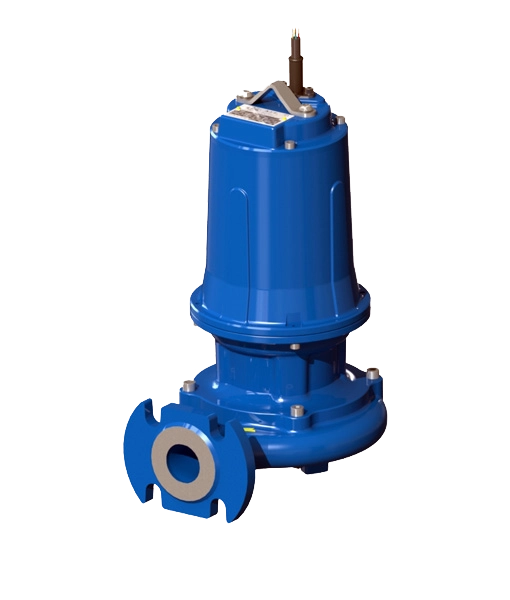

The Master submersible grinder pump is designed and manufactured in Italy by AF Pumps, the cast iron construction and stainless steel cutter is particularly suited to handling waste water containing soft or fibrous solids.
The Master Series has a horizontal flanged discharge with free passage up to 9mm and a maximum flow rate of 350 litres per minute, and a maximum head of 36m.
The Master Series can be fitted with an optional claw for use on guide rail systems or freestanding, Master 4-5 and 6-7 only with optional foot support, in addition the 4T through to the 7T models now come with Klixon and water in oil chamber alarm outputs.

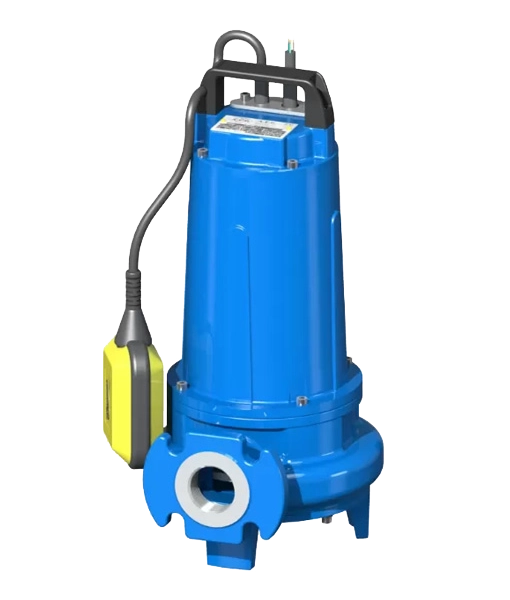

Operation on the Master Series is manual or automatic (with float switch), power input ranges from 0.9kW to 4.1kW, with single and three phase models available.
AF Pumps are sold exclusively by Automated Environmental Systems in the UK.
Key features
Maximum flow 350 litres per minute, maximum head 36m
1¼ inch to 2 inch / DN32 to DN50 discharge
Stainless steel grinder impeller
Free passage up to 9mm
230v and 400v manual and automatic versions
4T, 5T, 6T and 7T models feature Klixon and water in oil chamber alarm outputs
230v models feature external box with motor protector and capacitor
Optional kit for mounting on guide rail systems
Optional foot support in galvanised steel or stainless steel AIS304 for Master 4-5 and 6-7 pumps – allows pumps to be used for freestanding installations
The Master submersible grinder pump is designed and manufactured in Italy by AF Pumps, the cast iron construction and stainless steel cutter is particularly suited to handling waste water containing soft or fibrous solids.
The Master Series has a horizontal flanged discharge with free passage up to 9mm and a maximum flow rate of 350 litres per minute, and a maximum head of 36m.
The Master Series can be fitted with an optional claw for use on guide rail systems or freestanding, Master 4-5 and 6-7 only with optional foot support, in addition the 4T through to the 7T models now come with Klixon and water in oil chamber alarm outputs.
Operation on the Master Series is manual or automatic (with float switch), power input ranges from 0.9kW to 4.1kW, with single and three phase models available.
AF Pumps are sold exclusively by Automated Environmental Systems in the UK.
The Master submersible grinder pump is designed and manufactured in Italy by AF Pumps, the cast iron construction and stainless steel cutter is particularly suited to handling waste water containing soft or fibrous solids.
The Master Series has a horizontal flanged discharge with free passage up to 9mm and a maximum flow rate of 350 litres per minute, and a maximum head of 36m.
The Master Series can be fitted with an optional claw for use on guide rail systems or freestanding, Master 4-5 and 6-7 only with optional foot support, in addition the 4T through to the 7T models now come with Klixon and water in oil chamber alarm outputs.
Operation on the Master Series is manual or automatic (with float switch), power input ranges from 0.9kW to 4.1kW, with single and three phase models available.
AF Pumps are sold exclusively by Automated Environmental Systems in the UK.
Key features
Maximum flow 350 litres per minute, maximum head 36m
1¼ inch to 2 inch / DN32 to DN50 discharge
Stainless steel grinder impeller
Free passage up to 9mm
230v and 400v manual and automatic versions
4T, 5T, 6T and 7T models feature Klixon and water in oil chamber alarm outputs
230v models feature external box with motor protector and capacitor
Optional kit for mounting on guide rail systems
Optional foot support in galvanised steel or stainless steel AIS304 for Master 4-5 and 6-7 pumps – allows pumps to be used for freestanding installations
Maximum flow 350 litres per minute, maximum head 36m
1¼ inch to 2 inch / DN32 to DN50 discharge
Stainless steel grinder impeller
Free passage up to 9mm
230v and 400v manual and automatic versions
4T, 5T, 6T and 7T models feature Klixon and water in oil chamber alarm outputs
230v models feature external box with motor protector and capacitor
Optional kit for mounting on guide rail systems
Optional foot support in galvanised steel or stainless steel AIS304 for Master 4-5 and 6-7 pumps – allows pumps to be used for freestanding installations
