Kessel Pumpfix F Backwater Pumping Station
Product overview

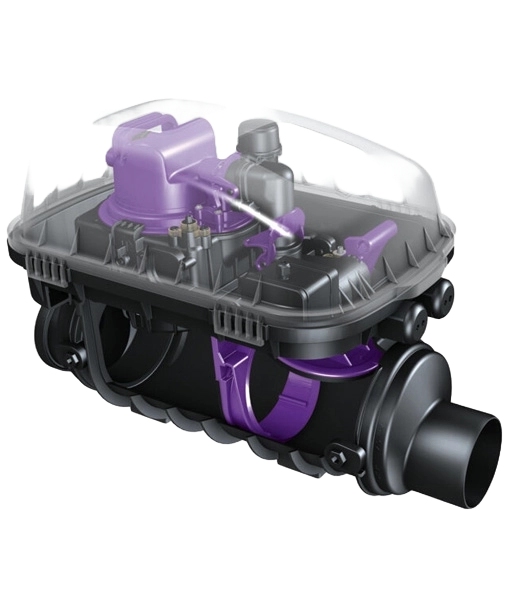

The Kessel Pumpfix F Backwater pumping station combines a backflow preventer with integrated pump, in the event of backwater, the pump macerates any solids and discharges the wastewater against the backwater pressure into the main drain.
The pumping station includes a control unit with Self Diagnosis System, battery back-up for alarm notification of backwater during a power failure, automatic closure during backwater as well as a manual closure lever.
Highlights
Backwater valve with integrated sewage pump, suitable for wastewater with or without sewage
Control unit with SDS (Self Diagnosis System) displays the operating status and alarms and battery back-up maintains alarm in the event of a power failure
Automatic motorised closure during backwater, with manual closure lever

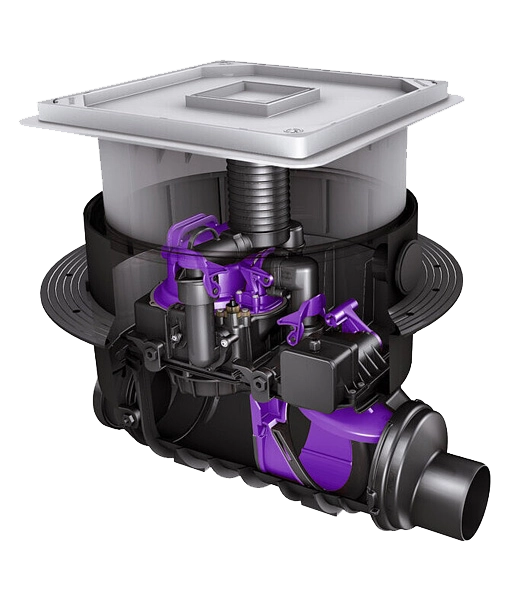

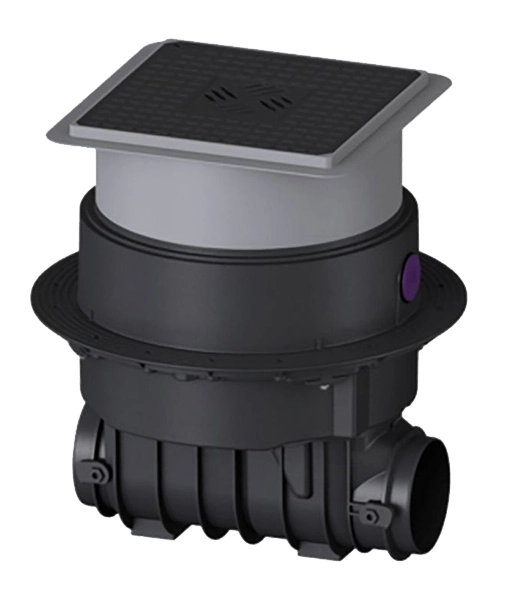

Versions for internal exposed pipe installation (without manhole) or concrete slab installation with solid or recessed (for tiling) manhole cover
Details
Specifications
Backwater pumping station according to EN 13564
Battery back-up
Protection type IP 54
Motorised backwater flap
Splash Protection IP 68 (3 m depth / 24 hours)
Power cable length: 5 m
Power usage 1 kilowatt
Current 4.9 Amp
Performance at 0.3 bar Q 10 m3/h = 2,2 l/s
