Our IWF Float Switch features an internal counter weight providing stable and reliable activation in wastewater systems with maximum working temperature of 70°C. The one-piece design eliminates the need for external weights and reduces installation time. The robust housing is specifically chosen to provide a long trouble-free service life under harsh conditions in pump stations and treatment tanks.
The counter weight is located inside the ‘pear shape’ polypropylene chamber, giving the float a self-tilting action, the opening and closing circuit operations are via a silver contact micro-switch arrangement within the float chamber.
Non-Mercury float switch with actuation by roller ball and microswitch
Float size 100 x 174mm
Compressive strength of 482 KN/m2
Maximum depth of 20m
Maximum working temperature 70°C
Can be used on single and three-phase systems
Three-core CPE (chlorinated polyethylene) synthetic rubber cable (10m, 20m, 30m or 50m)

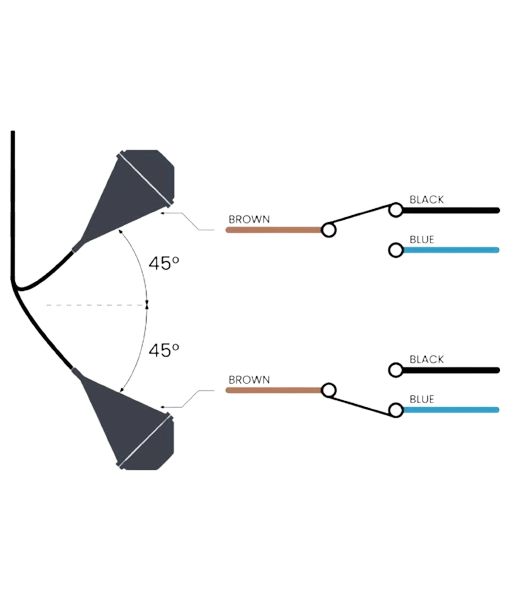

Depending on the application, the guide below indicates which wires would need to be connected to your pump, control panel or high-level alarm.
