Key features
Garden system provides reclaimed rainwater for irrigation to a garden tap (tap not supplied, some additional pipework maybe required)
Rotationally moulded, one piece tanks, installed without the need for concrete, thereby minimising installation costs and supported by 25 year tank guarantee
Minimum installation depth, can be installed in ground water up to tank shoulder
Installation depth is 60% less than other rainwater tanks due to flat tank, with up to 70% less excavation required
Built in self-cleaning filter, overflow kit and pressure sensitive pump delivers clean rainwater to a garden tap
External 25mm black and green HDPE pipe included as recommended by water companies
Excavation pit needs to be just 400mm longer and wider than the chosen tank and depth needs to be just 100mm deeper than total height to allow for 100mm aggregate base
Downloads
Tank Installation (.pdf)
Pump Installation (.pdf)
Specifications
Volume |
1,500L |
Weight |
80 Kg |
Length |
1,200mm |
Width |
2,400mm |
Overall Height (inc. 635mm shaft) |
1015 – 1415mm (up to 400mm can be cut off shaft to achieve correct invert) |
Ground to Invert (inc. 635mm shaft) |
320 – 720mm (up to 400mm can be cut off shaft to achieve correct invert) |
Invert to Outlet |
162mm |
Connected roof surface area (min.) |
20m² |
Garden size for irrigation (rough guide) |
100m² |
Volume |
3,000L |
Weight |
170 Kg |
Length |
2,400mm |
Width |
2,400mm |
Overall Height (inc. 635mm shaft) |
1015 – 1415mm (up to 400mm can be cut off shaft to achieve correct invert) |
Ground to Invert (inc. 635mm shaft) |
320 – 720mm (up to 400mm can be cut off shaft to achieve correct invert) |
Invert to Outlet |
162mm |
Connected roof surface area (min.) |
40m² |
Garden size for irrigation (rough guide) |
300m² |
Volume |
5,000L |
Weight |
250 Kg |
Length |
2,960mm |
Width |
2,220mm |
Overall Height (inc. 635mm shaft) |
1350 – 1750mm (up to 400mm can be cut off shaft to achieve correct invert) |
Ground to Invert (inc. 635mm shaft) |
345 – 745mm (up to 400mm can be cut off shaft to achieve correct invert) |
Invert to Outlet |
162mm |
Connected roof surface area (min.) |
70m² |
Garden size for irrigation (rough guide) |
500m² |
Volume |
7,500L |
Weight |
310 Kg |
Length |
3,340mm |
Width |
2,310mm |
Overall Height (inc. 635mm shaft) |
1415 – 1815mm (up to 400mm can be cut off shaft to achieve correct invert) |
Ground to Invert (inc. 635mm shaft) |
310 – 710mm (up to 400mm can be cut off shaft to achieve correct invert) |
Invert to Outlet |
162mm |
Connected roof surface area (min.) |
90m² |
Garden size for irrigation (rough guide) |
800m² |
Supplied equipment

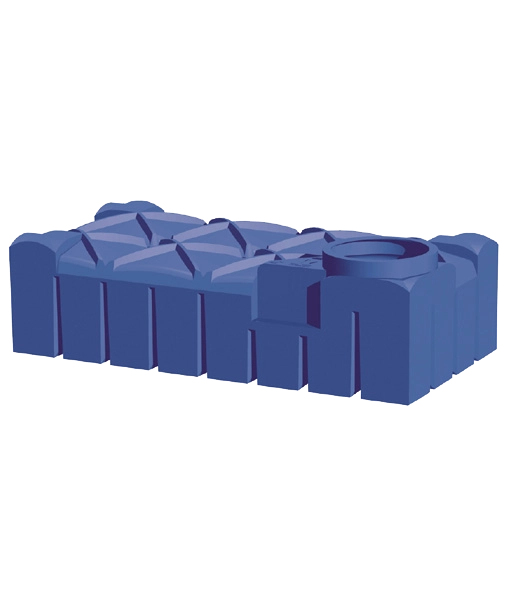

Shallow dig flat tank

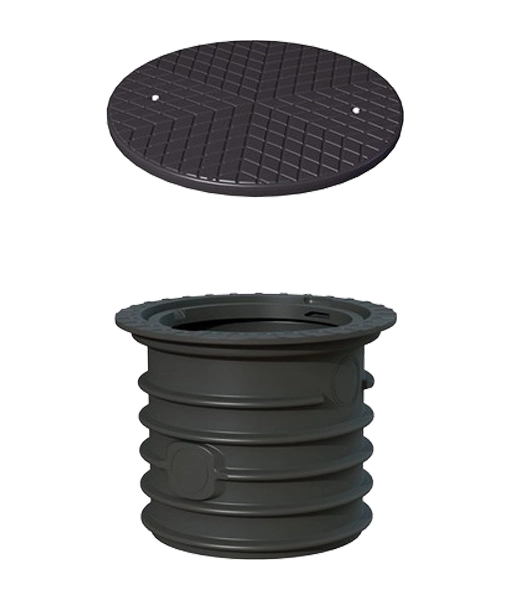

635mm extension shaft for tank (can be cut by up to 400mm on site)
Pedestrian rated manhole cover
Pre-fitted filter kit including overflow siphon and calmed inlet

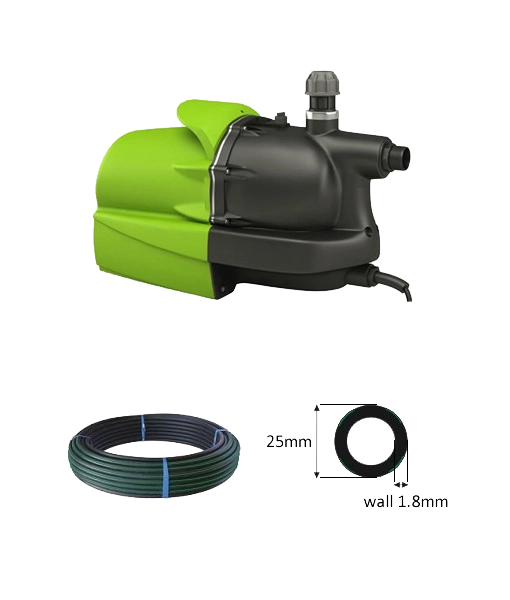

Pressure sensitive pump (min. flow 10L/min)
25m coil of 25mm black and green HDPE pipe
Installation pack and labels (for identifying tap water is not suitable for drinking)
