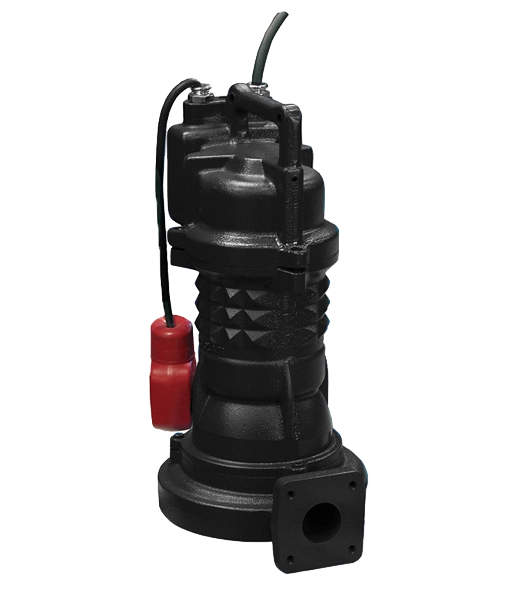

The Faggiolati Gnasher submersible grinder pump is a high-quality pump which has been designed for arduous waste water and sewage applications.
The Faggiolati gnasher pump features a G250 cast iron body and volute, G250+Ni impeller, Stainless Steel grinder mechanism (AISI 440), Stainless Steel shaft and fittings and H07RN/F neoprene cable.
Models 1M to 5M feature Nitrile o-rings and lip seal and silicon carbide/carbide mechanical seal arrangement, while models 6T to 10T have a double mechanical seal. The pumps are supplied free standing with either a 2 inch threaded horizontal flange or a 2-inch BSFP elbow discharge. Guide rail options are available.
All single phase 230v models (M) come complete with a float switch for automatic operation and an IP 55 control box housing an illuminated on/off switch, start and run capacitors, thermal overload and reset. All 400v models (T) are manual operation only (no float switch).
Grinder pumps are also known as macerator pumps and cutter pumps.
Submersible electric pumps with grinder are used for the lifting of waters containing filamentous materials, paper or textile materials.
230v models (M) with float switch for automatic operation / 400v models (T) manual operation
Suitable for clearance of waste waters originating from service stations, housing communities, camping sites
Robust construction with watertight electric motors connected by reduced length shafts to the impellers
Flowrate Max. |
190 L/min |
Head Max. |
10m |
Impeller Type |
Stainless Steel Cutter |
Power |
1.1 kW (M) / 1.4 kW (T) |
Voltage |
230v (M) / 400v (T) |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
6mm |
Weight |
30 Kg |
Dimensions (H x W x L) |
472mm x 208mm x 253mm |
Flowrate Max. |
240 L/min |
Head Max. |
14m |
Impeller Type |
Stainless Steel Cutter |
Power |
1.1 kW (M) / 1.4 kW (T) |
Voltage |
230v (M) / 400v (T) |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
6mm |
Weight |
30 Kg |
Dimensions (H x W x L) |
472mm x 208mm x 253mm |
Flowrate Max. |
260 L/min |
Head Max. |
18m |
Impeller Type |
Stainless Steel Cutter |
Power |
1.1 kW (M) / 1.4 kW (T) |
Voltage |
230v (M) / 400v (T) |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
6mm |
Weight |
30 Kg |
Dimensions (H x W x L) |
472mm x 208mm x 253mm |
Flowrate Max. |
265 L/min |
Head Max. |
21m |
Impeller Type |
Stainless Steel Cutter |
Power |
1.1 kW (M) / 1.4 kW (T) |
Voltage |
230v (M) / 400v (T) |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
6mm |
Weight |
40 Kg |
Dimensions (H x W x L) |
460mm x 224mm x 268mm |
Flowrate Max. |
265 L/min |
Head Max. |
26m |
Impeller Type |
Stainless Steel Cutter |
Power |
1.8 kW (M) / 2.4 kW (T) |
Voltage |
230v (M) / 400v (T) |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
6mm |
Weight |
40 Kg |
Dimensions (H x W x L) |
460mm x 224mm x 268mm |
Flowrate Max. |
265 L/min |
Head Max. |
27m |
Impeller Type |
Stainless Steel Cutter |
Power |
3.2 kW |
Voltage |
400v |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
7mm |
Weight |
52 Kg |
Dimensions (H x W x L) |
501mm x 242mm x 288mm |
Flowrate Max. |
265 L/min |
Head Max. |
32m |
Impeller Type |
Stainless Steel Cutter |
Power |
3.2 kW |
Voltage |
400v |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
7mm |
Weight |
52 Kg |
Dimensions (H x W x L) |
501mm x 242mm x 288mm |
Flowrate Max. |
265 L/min |
Head Max. |
35m |
Impeller Type |
Stainless Steel Cutter |
Power |
4.1 kW |
Voltage |
400v |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
7mm |
Weight |
66 Kg |
Dimensions (H x W x L) |
509mm x 242mm x 295mm |
Flowrate Max. |
265 L/min |
Head Max. |
46m |
Impeller Type |
Stainless Steel Cutter |
Power |
5.0 kW |
Voltage |
400v |
Construction |
Cast Iron |
Discharge Size |
1½ inch / 2 Inch flange/elbow |
Pumped medium |
Waste water with soft solids |
Free Passage |
7mm |
Weight |
66 Kg |
Dimensions (H x W x L) |
509mm x 242mm x 295mm |
G250 cast iron body/volute
G250+Ni impeller
Stainless steel grinder mechanism (AISI 440), shaft and fixings
H07RN/F neoprene cable
Models G1 to G5 have Nitrile O-rings and lip seal and silicon carbide/carbide mechanical seal arrangement
Models G6/7/8/10T have a double mechanical seal
Supplied with 1½ or 2 inch threaded horizontal flange
All 230V single phase models supplied for auto (float switch) operation
An IP55 control box houses On/Off illuminated switch, start and run capacitors, thermal overload and reset
