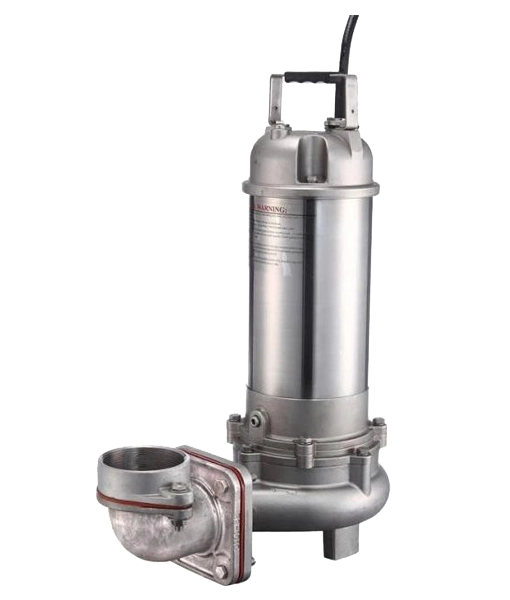

The Evak EWS Specialist submersible sewage pump is a heavy-duty pump with a non-clogging vortex impeller constructed from loss wax 316 Stainless Steel.
EWS pumps can be used with medium concentration waste water and are designed for minimised abrasive wear with a large impeller clearance.
The maintenance-free design includes 316 Stainless Steel motor cover, motor housing, rotor and shaft, seal housing, impeller and outer casing, with dual mechanical seal in Si. Ca and a Viton oil seal.
The handle on the half horsepower and one horsepower models is made from nylon 6 and the handle on the 2, 3, 5 and 7.5 horsepower models is made from 316 Stainless Steel.
The EWS is submersible to 10 metres, is protected to IP 68 and is available with a 2 inch threaded vertical discharge, the 3-inch and 4-inch discharge models have a threaded vertical discharge that can be removed to allow a guide rail claw to be fitted directly to the flanged horizontal discharge.
Non-clogging vortex impeller with large clearance 35-45mm free passage
Designed for minimised abrasive wear
Maintenance free
Freestanding with threaded vertical discharge, optional pedestal kit for use with guide rails
Maximum flow rate 1,110 litres per minute, maximum head 28.8m
Single or three phase manual operation
Flowrate Max. |
472 L/min |
Head Max. |
14.3m |
Power |
0.75 kW / 1.0 HP |
Voltage |
230v / 400v |
Speed |
2850 RPM |
Construction |
316 Stainless Steel |
Discharge Size |
2 Inch |
Free Passage |
35mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
18 Kg |
Dimensions (H x W x L) |
455mm x 150mm x 228mm |
Flowrate Max. |
507 L/min |
Head Max. |
18.3m |
Power |
1.5 kW / 2.0 HP |
Voltage |
230v / 400v |
Speed |
2850 RPM |
Construction |
316 Stainless Steel |
Discharge Size |
2 Inch (3 inch) |
Free Passage |
45mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
34.7 Kg |
Dimensions (H x W x L) |
532mm x 208mm x 390mm |
Flowrate Max. |
1,010 L/min |
Head Max. |
23.3m |
Power |
3.7 kW / 5.0 HP |
Voltage |
400v |
Speed |
2850 RPM |
Construction |
316 Stainless Steel |
Discharge Size |
3 Inch (4 inch) |
Free Passage |
45mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
56 Kg |
Dimensions (H x W x L) |
633mm x 210mm x 466mm |
Flowrate Max. |
1,110 L/min |
Head Max. |
28.8m |
Power |
5.5 kW / 7.5 HP |
Voltage |
400v |
Speed |
2850 RPM |
Construction |
316 Stainless Steel |
Discharge Size |
3 Inch (4 inch) |
Free Passage |
45mm |
Cable |
10m |
Pumped Medium |
Sewage / dirty water |
Weight |
62 Kg |
Dimensions (H x W x L) |
673mm x 210mm x 466mm |
Loss wax 316 stainless steel construction, motor housing and cover, pump casing, shaft and rotor and impeller
Dual EKK mechanical seal with Viton oil seal
10m H07RN cable
Nylon or Stainless steel handle (model dependent)
Class B insulation, IP68 protection
Submersible to 10m, liquid temperature 0-40°C
