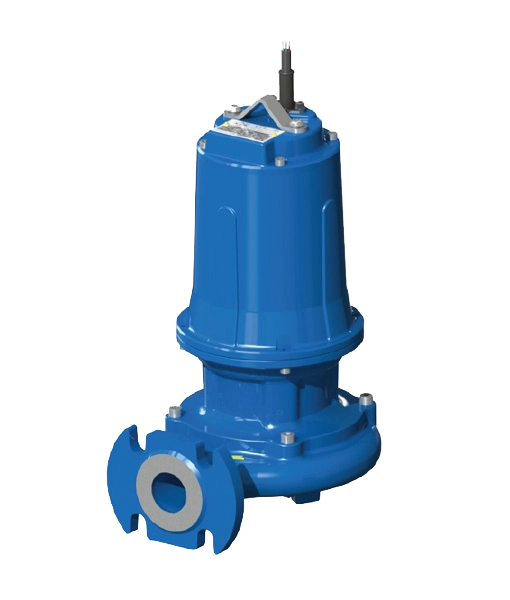

The Stream from AF Pumps is a medium duty submersible drainage pump that is suitable for clear wastewater, rainwater and flood water containing small amounts of sand. Designed and manufactured in Italy, the Stream are hard-wearing and dependable pumps.
The Stream is particularly suited to high head applications, and can be used for domestic pumping, agriculture and irrigation. An optional kit can be used to mount the pumps on guide rails inside a tank or pumping station or the Stream 4-5 and 6-7 can be used freestanding with optional foot support.
Construction is cast iron with a stainless steel strainer and the pump has an open multi-vane fully submerged impeller, suitable for handling clear waste water containing small solids up to 10mm.
The Stream has a maximum flow rate of 350 litres per minute and a maximum head of 40m, the pumps are available in 230v single phase and 400v three phase with a choice of manual or automatic (with attached float switch) operation.
Key features
Suitable for draining clear wastewater, rainwater and seepage containing small amounts of sand
Free passage up to 10mm
High head pump ideal for fish processing sector and irrigation
Stainless steel AISI 316 strainer
Pumps are available in 230v, manual and automatic with attached float switch and 400v manual
4T, 5T, 6T and 7T models feature Klixon and water in oil chamber alarm outputs
Maximum liquid temperature of 40°C
Maximum immersion depth of 20m
PH of pumped fluid 6-10
Freestanding pump, optional claw for mounting on guide rail
Optional foot support in galvanised steel or stainless steel AIS304 for Stream 4-5 and 6-7 pumps – allows pumps to be used for freestanding installations
The Stream from AF Pumps is a medium duty submersible drainage pump that is suitable for clear wastewater, rainwater and flood water containing small amounts of sand. Designed and manufactured in Italy, the Stream are hard-wearing and dependable pumps.
The Stream is particularly suited to high head applications, and can be used for domestic pumping, agriculture and irrigation. An optional kit can be used to mount the pumps on guide rails inside a tank or pumping station or the Stream 4-5 and 6-7 can be used freestanding with optional foot support.
Construction is cast iron with a stainless steel strainer and the pump has an open multi-vane fully submerged impeller, suitable for handling clear waste water containing small solids up to 10mm.
The Stream has a maximum flow rate of 350 litres per minute and a maximum head of 40m, the pumps are available in 230v single phase and 400v three phase with a choice of manual or automatic (with attached float switch) operation.
The Stream from AF Pumps is a medium duty submersible drainage pump that is suitable for clear wastewater, rainwater and flood water containing small amounts of sand. Designed and manufactured in Italy, the Stream are hard-wearing and dependable pumps.
The Stream is particularly suited to high head applications, and can be used for domestic pumping, agriculture and irrigation. An optional kit can be used to mount the pumps on guide rails inside a tank or pumping station or the Stream 4-5 and 6-7 can be used freestanding with optional foot support.
Construction is cast iron with a stainless steel strainer and the pump has an open multi-vane fully submerged impeller, suitable for handling clear waste water containing small solids up to 10mm.
The Stream has a maximum flow rate of 350 litres per minute and a maximum head of 40m, the pumps are available in 230v single phase and 400v three phase with a choice of manual or automatic (with attached float switch) operation.
Key features
Suitable for draining clear wastewater, rainwater and seepage containing small amounts of sand
Free passage up to 10mm
High head pump ideal for fish processing sector and irrigation
Stainless steel AISI 316 strainer
Pumps are available in 230v, manual and automatic with attached float switch and 400v manual
4T, 5T, 6T and 7T models feature Klixon and water in oil chamber alarm outputs
Maximum liquid temperature of 40°C
Maximum immersion depth of 20m
PH of pumped fluid 6-10
Freestanding pump, optional claw for mounting on guide rail
Optional foot support in galvanised steel or stainless steel AIS304 for Stream 4-5 and 6-7 pumps – allows pumps to be used for freestanding installations
Asynchronous squirrel cage type motor in dielectric anti-oxide oil bath, with IP 68 protection and insulation class F
230v models feature built-in capacitor motor protection or external control box, 400v models require external protection (not provided)
Motor housing cast iron GG 25, shaft stainless steel AISI 420, electric cable neoprene H07RN8-F, bolt A2 class AISI 304, O-rings nitrile
Two mechanical seals in ecologic oil chamber, wet end silicon carbide and motor side ceramic/graphite
Key features
Suitable for draining clear wastewater, rainwater and seepage containing small amounts of sand
Free passage up to 10mm
High head pump ideal for fish processing sector and irrigation
Stainless steel AISI 316 strainer
Pumps are available in 230v, manual and automatic with attached float switch and 400v manual
4T, 5T, 6T and 7T models feature Klixon and water in oil chamber alarm outputs
Maximum liquid temperature of 40°C
Maximum immersion depth of 20m
PH of pumped fluid 6-10
Freestanding pump, optional claw for mounting on guide rail
Optional foot support in galvanised steel or stainless steel AIS304 for Stream 4-5 and 6-7 pumps – allows pumps to be used for freestanding installations
