Product code: 123594 Category:

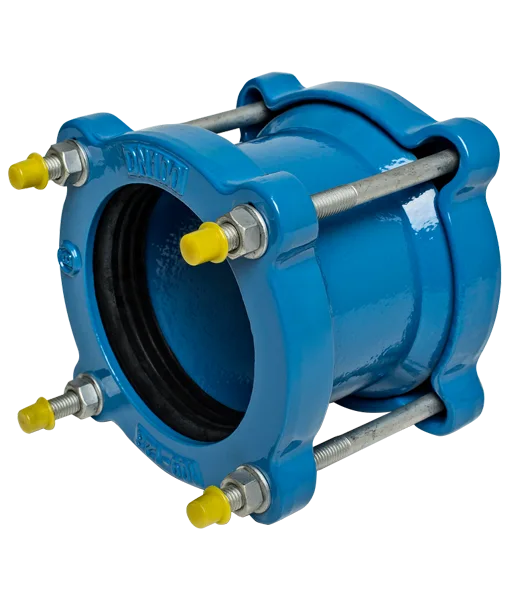

Ductile Iron Universal Coupling

£60

34 in stock

Rated Excellent onFive stars

Need some advice?

Not sure which product you need? Our team can help.

01284 658770

Product overview

Ductile iron universal couplings provide a reliable, leak proof connection between pipes of various materials. Engineered with an intelligent design that permits angular deflection during installation and subsequent ground settlement, these fittings are ideal for underground installations where structural movement is expected.

Every coupling features a high grade protective coating to ensure long term corrosion resistance when buried or exposed to damp chamber conditions. The robust construction allows for minor variations in the pipe outside diameter, simplifying on site connections and reducing installation downtime for maintenance crews and civil contractors.

Highlights

Universal coupling for connecting pipes of various materials, suitable for use with water and sewage

Robust ductile iron construction providing exceptional tensile strength and impact resistance compared to traditional cast iron alternatives

Large tolerance allows the joint to accommodate ground movement and pipe misalignment without losing seal integrity, maximum angular deflection 4°

Durable epoxy corrosion protection system designed to withstand aggressive soils and chemical exposure in harsh underground environments

Details

Nominal Size Outside Diameter Range Bolts
DN50
 57-74mm M12X180 x 2
DN65
 63-85mm | 72-85mm M12X180 x 2
DN80
 85-107mm | 88-103mm M12X180 x 4
DN100
 107-132mm | 108-118mm | 109-128mm M12X180 x 4
DN125
 132-146mm | 132-158mm M12X190 x 4
DN150
 158-184mm | 159-182mm M12X190 x 4
DN200
 189-212mm | 218-235mm | 218-244mm M12x210 x 4
DN250
 243-269mm | 266-295mm | 272-289mm M12x220 x 6
DN300
 315-332mm | 315-349mm | 322-339mm | 332-349mm M12x220 x 6
DN350
 351-378mm | 374-391mm M14x250 x 8
DN400
 417-437mm M14x250 x 8
DN500
 526-546mm M14x250 x 10
DN600
 630-650mm M14x250 x 10
