Product code: 117747
Category: Pumping Station Accessories
Tags: guide rail kit, pedestal kit
View more products from... Automated Environmental Systems
DN100 Guide Rail Kit
£654 £545 + vat
30 in stock online Next working day delivery available
Guide Rail Tube
Galvanised Steel Guide Rail Tube - 1½ INCH X 3M
1 in stock online Next working day delivery available
-
+
£63 £52.50 + vat
Galvanised Steel Guide Rail Tube - 1½ INCH X 6M
16 in stock online Next working day delivery available
-
+
£126 £105 + vat
Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri
Wholesale enquiries
If you would like more information on our range of Poolstar products, including Poolex Spawer heat pumps, Holl's saunas, NetSpa ice baths and Formidra showers, you can talk to our team on 01284 658770 or send us an email.
We are proud to be the official UK & Ireland Poolstar distribution partner.
View the Poolstar 2025-2026 Catalogue - pdf (73Mb)
Product code: 117747
Category: Pumping Station Accessories
Tags: guide rail kit, pedestal kit
View more products from... Automated Environmental Systems
About this product

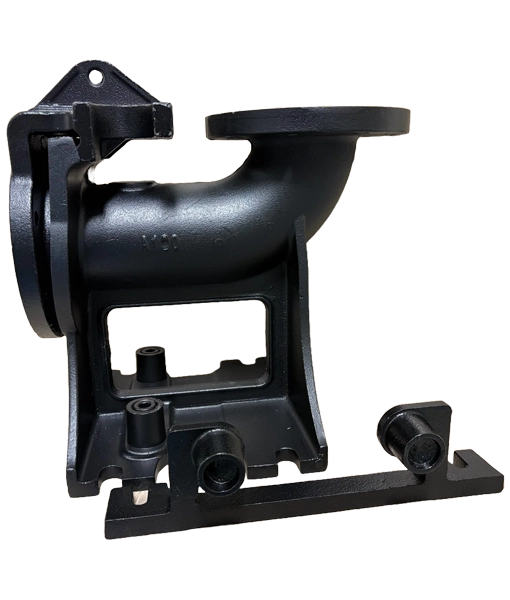

Our DN100 guide rail kit includes pedestal base, pump locating claw (sliding flange) and top guide rail bracket and is suitable for PN10/16 submersible pump flanges.
These flanged kits provide an automatic coupling device for submersible pumps that are used in pumping stations and septic tanks.

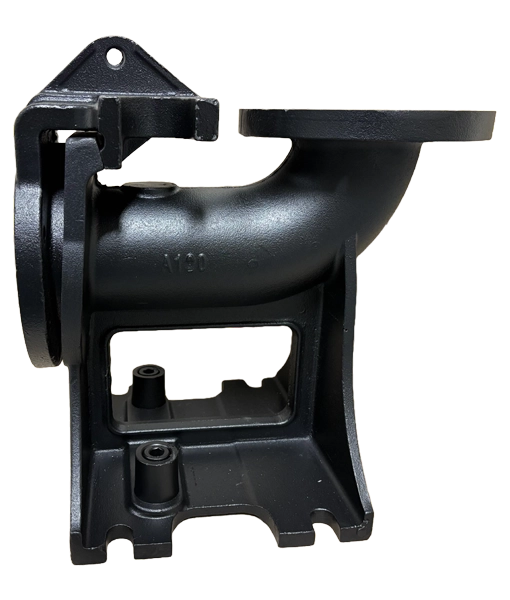

The pedestal base features a vertical flanged outlet and is constructed from cast iron, with black epoxy paint finish.
The guide rail kit allows full free passage of pumped liquids and the pump intake port is kept at optimal height, meaning there is no need to provide a step in the bottom of the tank.
The guide rail tubes to be used are 1½ inch – please note that the kit does not include any fixings or the guide rail.
Downloads
Drawing (.pdf)

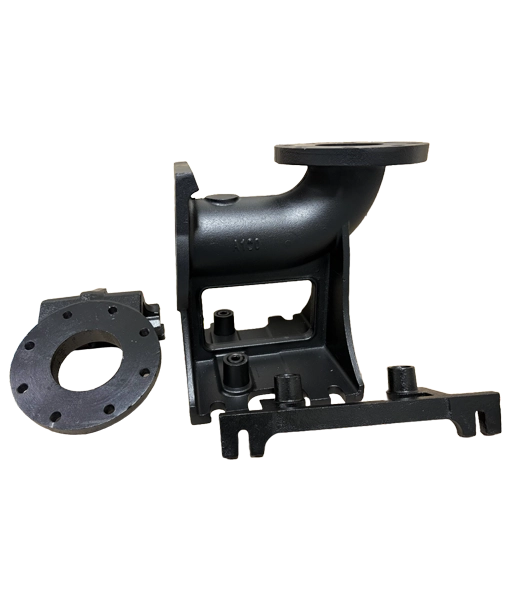

Guide rail kit contents
Pedestal base (coupling seat)
pump claw (coupling adaptor)
Top bracket (upper guide support)
