Overview

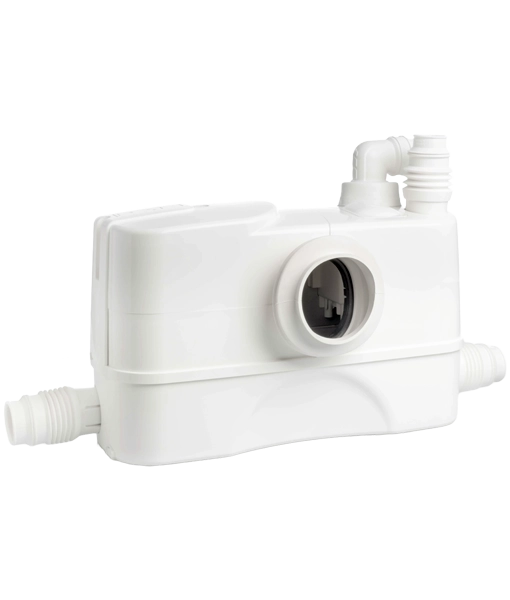

The DAB Genix 130 is a premium, compact automatic wastewater lifting station engineered for seamless installation of toilets, utility rooms, or ensuites where gravity fed drainage is unavailable.

Capable of pumping up to six metres vertically or 90 metres horizontally, the Genix 130 easily handles waste from a primary WC plus three additional connection points, making it the ultimate high performance solution for basement conversions, home extensions, and commercial fit-outs.

Highlights

Standard Comfort
Primary Inlets 1 x Toilet 1 x Toilet
Auxiliary Inlets x3 (Shower/Sink/Bidet) x3 (Shower/Sink/Bidet)
Max Lift / Distance 6m / 90m 6m / 90m
Anti-Odour Filter Yes (Active Carbon) Yes (Active Carbon)
Acoustic Insulation Standard Soundproofing Advanced Sound Dampening (<50dB)
Best Suited For Utility rooms, outbuildings, garages Ensuites, adjacent to bedrooms / living areas

Unlike standard macerators that require complex, messy disassembly when a blockage occurs, the Genix 130 is built with installer and homeowner convenience in mind. It features an innovative external motor shaft access point that allows you to unblock grinding blades from the outside, keeping maintenance completely dry, clean, and tool free.

For internal installations near bedrooms, guest rooms, or modern living spaces, the Genix 130 Comfort features integrated high-density acoustic soundproofing. This significantly dampens motor vibration and operational noise, making it one of the quietest automatic lifting stations on the market today.

Highlights

Connects directly to a standard toilet while offering three additional side inlets for a basin, shower, bidet, or washing machine

Access the capacitor, electronic PCB board, and pressure switch directly from the top lid without removing the pump or draining the tank

Supplied fully equipped with built-in non-return valves on the discharge pipework to eliminate unpleasant backflow and sewage odours

Features a built-in active carbon filter system to keep the surrounding bathroom or utility room completely odour-free

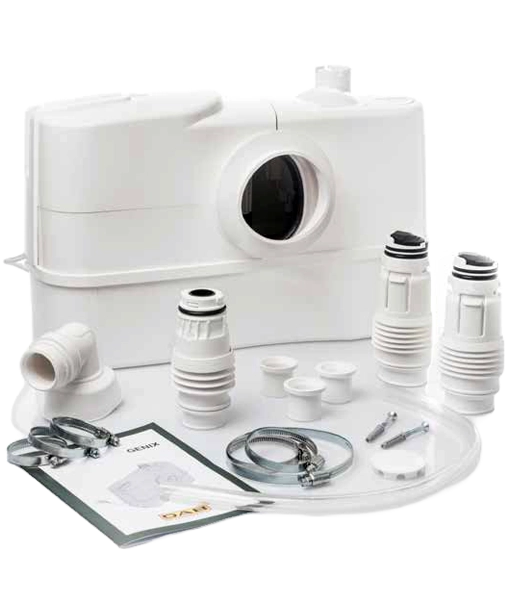

Supplied complete with fittings with non-return valves integrated, hose clamps, hose adaptors, ground-fixing screws, anti-vibration rubber nubs, and illustrated quick guide

Specifications

Solid passage
Grinding system
Max. Pumping Height
6m
Max. Pumping Distance
90m
Dimension of inlet
36-50mm
Discharge
22-40mm
Mains connection
230V 50Hz
Motor power
0.32 kW / 0.44 HP
Maximum current
2.3A
Tank Use
Above Ground
Unit dimensions (HxWxL)
277mm x 178mm x 456mm

Liquid temperature range: From 0° to +50°C

Liquid pumped: Sewage water containing fecal matter as regulated by EN 12050-3

Third parts certifications: VDE-GS, LGA, VDE-EMC

Tank capacity and delivery: approved for flush volumes of 6 and 9 litres as regulated by EN 12050-3

International Protection grade: IP44

Tank in Barium 15% polypropylene

Impeller in PPO 30% GF

Motor shaft in stainless steel

Grinding blades in nickel plated stainless steel

Asyncronous motor in stainless steel

Shaft and motor sleeve in stainless steel

Thermal protection for overheating

Motor shaft wear resistant

Documents
