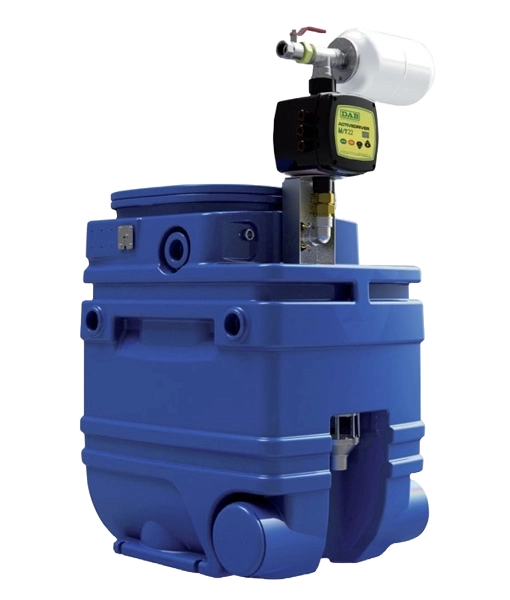

The DAB NBB Boosterbox cold water booster set is a modular solution for domestic water pressurising. The BoosterBox is made from WRAS approved material and is safe for use with potable (drinking) water.
The NBB concept includes a compact 280 litre WRAS approved tank, along with a submerged pump, fixed speed or energy saving inverter controls and an assembling kit including the expansion tank (where this is not integrated in the pump itself).

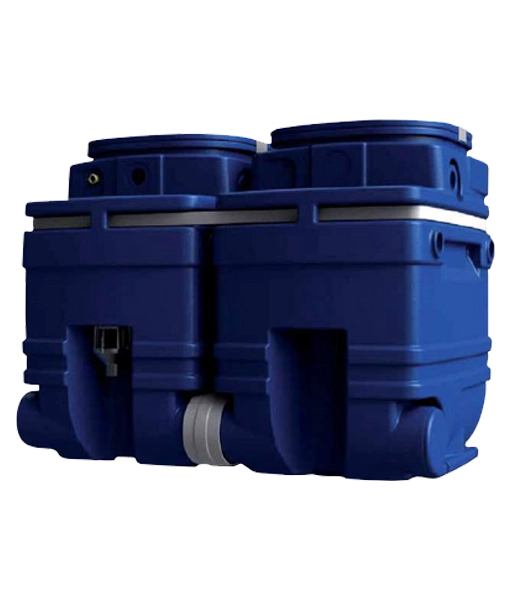

By choosing the ADDITIONAL TANK KIT, consisting of a 280 litre tank, junction elbow, gasket and belt, it’s possible to double the capacity of the system.
The NBB Boosterbox offers high performance combined with easy and simple installation and operation. The compact size and low noise of each system provides the perfect solution to low water pressure problems.
280 litre tank (220L working capacity) made from WRAS approved material for potable water
Option of fixed speed or variable speed operation
Equipped with WRAS approved filling valve and overflow valve
Protection grid
Designed to fit through standard doorway, lightweight construction
Compact dimensions (W) 570mm x (D) 700mm x (H) 870mm
Pump |
Pulsar 50/50 M (Submersible) |
Operation |
Variable speed (Active driver) |
Max Flow |
80 L/min |
Max Head |
69m |
Power |
1.0 kW / 1.36 HP |
Voltage |
230V |
Suction (DNA Gas) |
¾ inch |
Discharge (DNM Gas) |
1 inch |
Pump |
Divertron 1200M (Submersible) |
Operation |
Fixed speed |
Max Flow |
95 L/min |
Max Head |
48m |
Power |
0.75 kW / 1.0 HP |
Voltage |
230V |
Suction (DNA Gas) |
¾ inch |
Discharge (DNM Gas) |
1 inch |
Operating range: from 10 to 95 litres/min. with head up to 69m
Liquid temperature range for domestic use: from 0°C to +35°C
Liquid quality requirements: suitable for potable water pursuant to EN1717 and EN13077 European standards
Maximum ambient temperature +40°C
Max. operational pressure 8 bar (800 kPa) for surface pump configurations
Max. inlet pressure 6 bar
Protection rating IP44 for surface pumps, IP68 for submerged pumps.
Insulation class F
