Key features
Maximum flow 533 litres per minute, maximum head 14m
50mm free passage
EN 12050-2 Compliance – certified for waste water
Suitable for sewer water and waste water in general and non aggressive
Pump body, seal housing cover, motor casing, cap with handle made of stainless steel
Vortex impeller in cast steel
Maximum immersion depth 10m
Available in 230v manual and automatic and 415v manual
2 inch horizontal discharge, female threaded BSP connection
Two year warranty
Downloads
Specifications (.pdf)
Manual (.pdf)

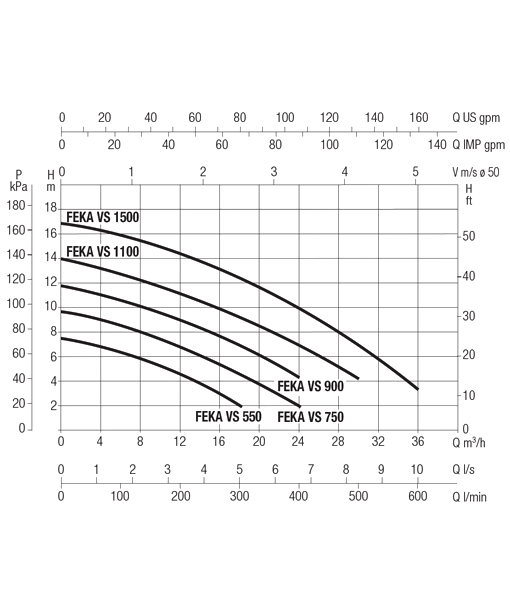

Product specifications
Flowrate Max. |
333 L/min |
Head Max. |
7.4m |
Impeller Type |
Vortex |
Power (kW) |
0.5 kW |
Voltage |
230v MA/MNA / 415v TNA |
Speed |
2900 RPM |
Construction |
Stainless Steel |
Discharge Size |
2 inch |
Free Passage |
50mm |
Cable |
10m |
Pumped medium |
Sewage / dirty water |
Weight |
16.3 Kg |
Dimensions (H x W x L) |
492mm x 170mm x 203mm |
Flowrate Max. |
400 L/min |
Head Max. |
9.6m |
Impeller Type |
Vortex |
Power (kW) |
0.75 kW |
Voltage |
230v MA/MNA / 415v TNA |
Speed |
2900 RPM |
Construction |
Stainless Steel |
Discharge Size |
2 inch |
Free Passage |
50mm |
Cable |
10m |
Pumped medium |
Sewage / dirty water |
Weight |
17.5 Kg |
Dimensions (H x W x L) |
492mm x 170mm x 203mm |
Flowrate Max. |
450 L/min |
Head Max. |
11.8m |
Impeller Type |
Vortex |
Power (kW) |
1.0 kW |
Voltage |
230v MA/MNA / 415v TNA |
Speed |
2900 RPM |
Construction |
Stainless Steel |
Discharge Size |
2 inch |
Free Passage |
50mm |
Cable |
10m |
Pumped medium |
Sewage / dirty water |
Weight |
19.3 Kg |
Dimensions (H x W x L) |
537mm x 170mm x 203mm |
Flowrate Max. |
533 L/min |
Head Max. |
14m |
Impeller Type |
Vortex |
Power (kW) |
1.2 kW |
Voltage |
230v MA/MNA / 415v TNA |
Speed |
2900 RPM |
Construction |
Stainless Steel |
Discharge Size |
2 inch |
Free Passage |
50mm |
Cable |
10m |
Pumped medium |
Sewage / dirty water |
Weight |
20.8 Kg |
Dimensions (H x W x L) |
537mm x 170mm x 203mm |
Technical data
Motor is dry, asynchronous, sealed and cooled by the pumped liquid
Rotor mounted on greased for-life ball bearings, oversized and selected to guarantee greater noise reduction and duration.
Thermo-amperometric protection as standard for single-phase version, and the user’s responsibility for the three-phase version
Constantly active capacitor on the single-phase version
Construction in accordance with the IEC 2-3 IEC 61-69 (EN 60335-2-41) standards
Motor protection class: IP 68 – Insulation class: F
Standard voltage: 220-240V 50Hz Single-phase – 400V 50Hz Three-phase
Continual running with liquid at 35°C and pump completely submerged
The single-phase version can be supplied with float for automatic function
Power supply cable: 10 metres of H07RN-F cable (with Shuko plug for the single-phase version)
