MNA – 230v single phase / manual operation (no float)

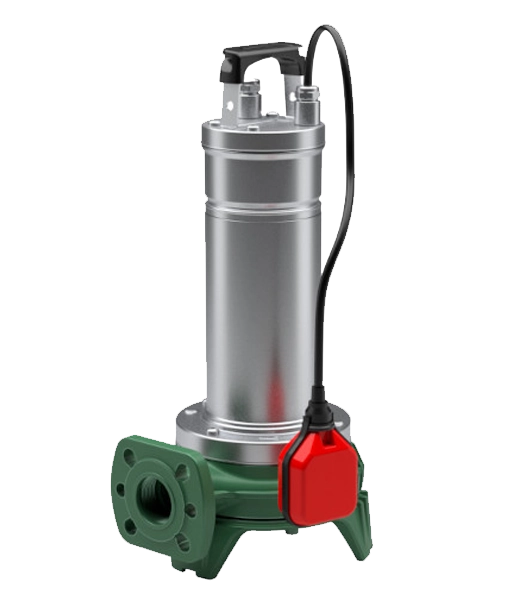

MA – 230v single phase / automatic operation (with float)
TNA – 400v three phase / manual operation (no float)
Key features
AISI 630 stainless steel shredder offers powerful shredding
DN32/DN40 flanged or 40mm / 1½ inch threaded connection
Reduced installation times and costs in the single-phase version with float (MA)
Pump body in cast iron with cataphoresis treatment for greater protection against rust
Motor casing in stainless steel
Performance capable of achieving heads of up to 25 metres
Single phase model with capacitor as standard (MNA / MA)
Downloads
Specifications (.pdf)
Manual (.pdf)
Brochure (.pdf)
Specifications
Flowrate Max. |
240 L/min |
Head Max. |
25m |
Impeller Type |
AISI 630 stainless steel shredder |
Power |
1.3 kW |
Voltage |
230v |
Operation |
Automatic with float |
Construction |
Cast Iron / Stainless Steel |
Discharge Size |
1½ Inch |
Pumped medium |
Waste water with stringy solids |
Cable |
10m |
Weight |
23 Kg |
Dimensions (H x W x L) |
496mm x 209mm x 253mm |
Flowrate Max. |
240 L/min |
Head Max. |
25m |
Impeller Type |
AISI 630 stainless steel shredder |
Power |
1.3 kW |
Voltage |
230v |
Operation |
Manual |
Construction |
Cast Iron / Stainless Steel |
Discharge Size |
1½ Inch |
Pumped medium |
Waste water with stringy solids |
Cable |
10m |
Weight |
23 Kg |
Dimensions (H x W x L) |
496mm x 209mm x 253mm |
Flowrate Max. |
240 L/min |
Head Max. |
25m |
Impeller Type |
AISI 630 stainless steel shredder |
Power |
1.3 kW |
Voltage |
400v |
Operation |
Manual |
Construction |
Cast Iron / Stainless Steel |
Discharge Size |
1½ Inch |
Pumped medium |
Waste water with stringy solids |
Cable |
10m |
Weight |
23 Kg |
Dimensions (H x W x L) |
496mm x 209mm x 253mm |
Technical data
Flow rate: from 0m³h to 14.4m³h
Head: 25m
Pumped liquid: sewage water, grey water
Free passage: n/a
Liquid temperature: from 0°C to +40°C for domestic use
Outlet: 1½ inch GAS – DN32 and DN40
Outlet direction: horizontal and vertical with curve kit accessory
Impeller: vortex in cast iron, there is a shredder
Motor protection degree: IP 68
Thermal classification of the motor insulation: F
Power cable type: H07RN8-F
Possible type of installation: fixed or mobile in vertical position
Maximum immersion depth: 7 meters
