Input IN1 / IN2 / IN3 / IN4:
Function external float switch
Function auxiliary set point
Function system disabling and fault reset
Function low pressure detection (KIWA)
Product code: 41562
Category: DAB ESYBOX Range
Tag: dab e.sybox
View more products from... DAB Pumps
DAB ESYLINK Wireless Interface
We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers
Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri
Product code: 41562
Category: DAB ESYBOX Range
Tag: dab e.sybox
View more products from... DAB Pumps
Overview

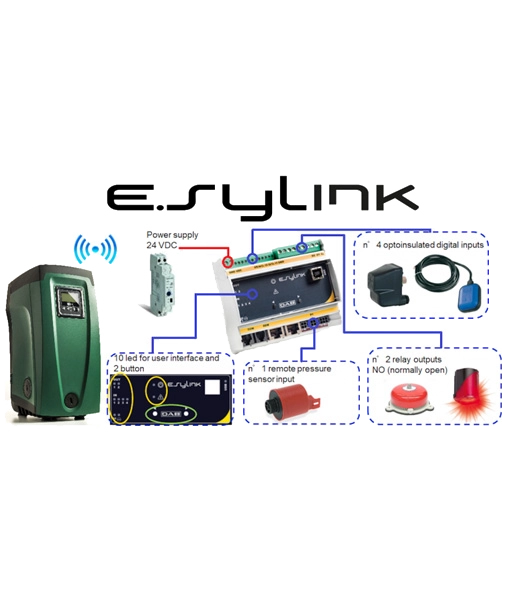

The DAB ESYLINK wireless interface allows the DAB ESYBOX to use digital inputs for the connection of external float and pressure switches, and to control two volt free relay outputs for alarm and BMS connections and to offer the possibility of connecting an auxiliary low pressure sensor.

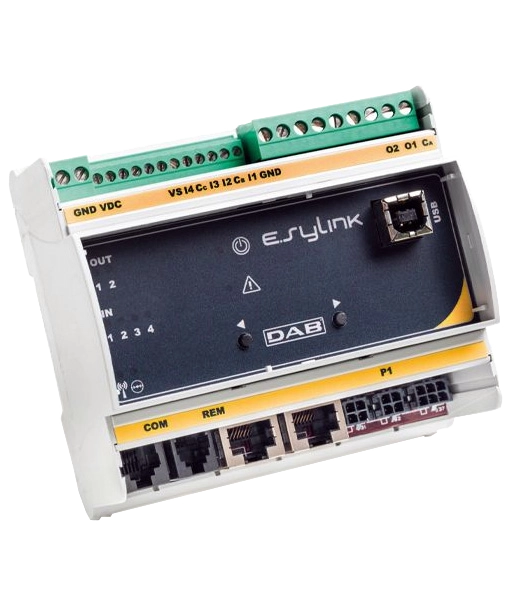

The ESYLINK has four opto-insulated digital inputs, two NO (normally open) relay outputs and has an output for one remote pressure sensor. There are 10 LEDs for the user interface and two keys. The digital inputs can be energised either with continuous negative and positive voltages or with alternating current at 50-60 Hz.
ESYLINK firmware can be updated via a PC through a USB connection and updating of the ESYBOX and ESYBOX MINI firmware can be done through the ESYLINK by means of a wireless connection.

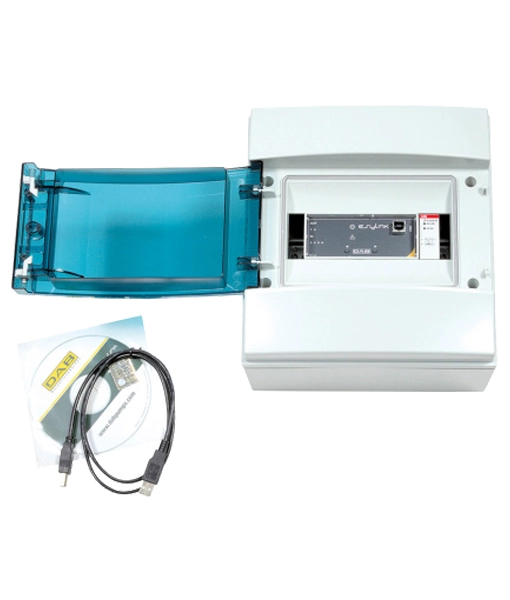

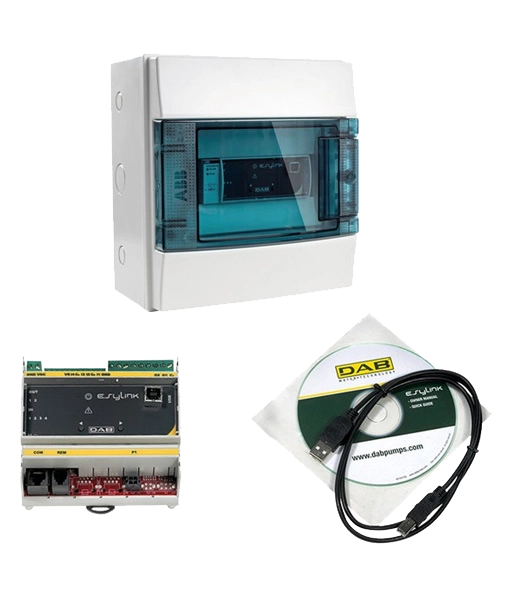

The DAB ESYLINK is also available as a KIT, and comes supplied with the ESYLINK, USB cable, 8DIN electric box, feeder and three cable clamps.
Connections
Input IN1 / IN2 / IN3 / IN4:
Function external float switch
Function auxiliary set point
Function system disabling and fault reset
Function low pressure detection (KIWA)
Output OUT1 / OUT2:
Communication active alarm
Communication motor running status
Downloads
Quick Guide (.pdf)
Manual (.pdf)
Connection Guide (.pdf)
Technical data
Supply voltage 24 V ± 20%
Current [mA] MIN : 55 @ 24V / MAX: 150 @ 24 V
Dimensions [mm] 105 x 94 x60 (6 DIN modules)
Weight (g) 200
Protection class IP 20
Working temperature [°C] 0 – 50
Can be installed on DIN modules in standard electrical boxes (size 6 modules)
LED for status indication and alarms
