Product code: 14625 Category: DAB ESYBOX Range Tag: dab e.sybox View more products from... DAB Pumps

Overview

Boost water pressure to your taps, showers, appliances, and even rainwater harvesting systems with the best-selling WRAS-approved DAB ESYBOX MINI 3. This powerful pump delivers up to 80 litres per minute for improved water flow throughout your home.

The ESYBOX MINI 3 has a variable speed pump which automatically adjusts according to the demand to ensure maximum running efficiency, providing constant water pressure without surges and can save you 50% on running costs compared with traditional solutions.

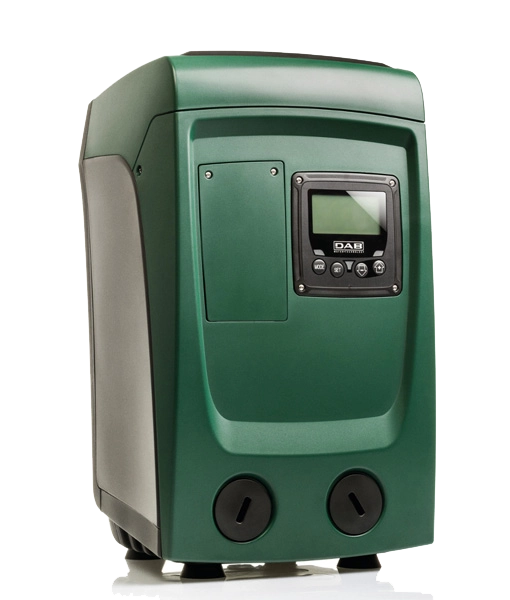

The compact ESYBOX MINI 3 can be installed horizontally, vertically or on a wall bracket (sold separately), and is designed to operate with ultra low running noise and minimal vibrations, one inch brass unions are supplied with the unit.

The ESYBOX MINI 3 cannot be connected directly to the mains water supply, it must be connected to a suitable break tank.

Dimensions (cm): H43.9 x W26.3 x D23.6

Key features

3-rotor model ensures further noise reduction and energy consumption

Wireless connection via your Wi-Fi network to DAB Live! App – Apple iOS | Google Play

Power Shower function using DAB Live! App gives temporary 1.5 bar boost to water pressure

Sleep mode using DAB Live! App for additional energy savings at night or when away from home

Wireless connection to link an additional ESYBOX MINI 3 when used in series (maximum of two units)

Inverter technology draws the energy necessary according to the water requirements, saving up to 50% on running costs

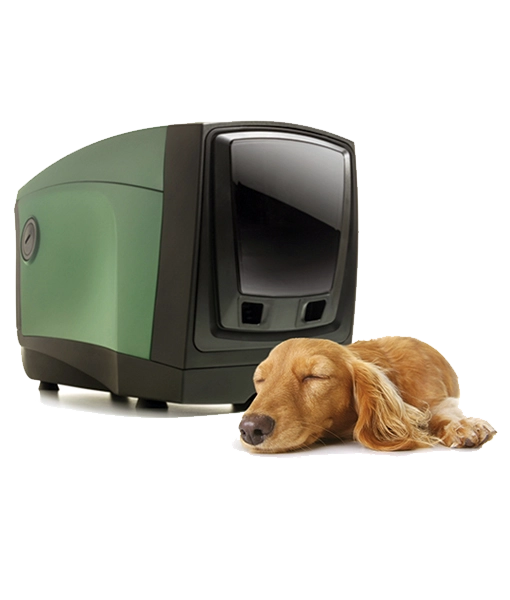

Quiet running booster pump – 45db(A) at one metre

Easy maintenance thanks to technical compartment, which allows access to the air vessel loading valve and non-return valve

Supplied with a pair of one inch brass connection unions

Optional wall bracket available

⚠ Must not be connected to incoming mains supply, break tank required

WRAS Approval Number: 1601034

Three year warranty

Downloads

Specifications (.pdf)

Manual (.pdf)

Quick Guide (.pdf)

Brochure (.pdf)

Technical data

Operating range: capacity up to 80 l/min; head up to 55 m

Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral

Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C

Maximum suction depth: 8 meters

Maximum ambient temperature: +50°C

Maximum operating pressure: 7.5 bar (750 kPa)

Motor protection rating: IPX4

Insulation class: F

Installation: Horizontal or vertical fixed position

Break tanks

Break tanks are used to ensure that the necessary amount of water is available to supply a system during periods of normal use and peak demand.

UK water regulations limit the water flow drawn from the mains supply to a maximum of 12 litres per minute, therefore you are not permitted to install a booster sets or other pump directly onto an incoming mains water supply if the flow will exceed 12 litres per minute. Break tanks are therefore a necessity in all DAB ESYBOX installations.

There is not currently a break tank from DAB that fits the ESYBOX MINI 3, a suitable break tank will need to be sourced separately.
