Product code: 100018 Category: Tags: , , View more products from...

Overview

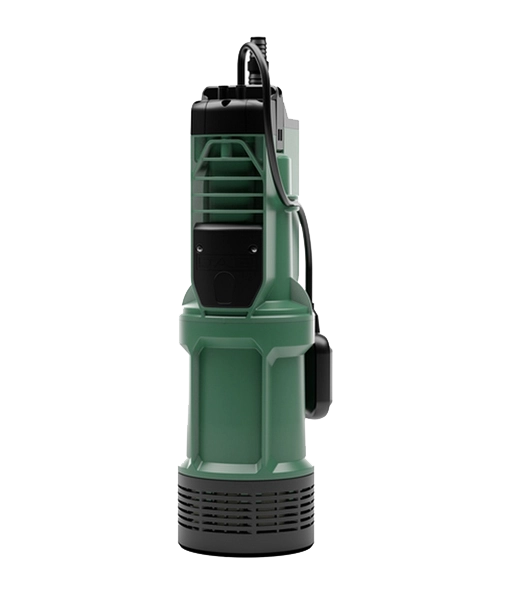

15 years after the original DAB DIVERTRON, this second generation DIVERTRON has increased performance, 30% reduced power consumption and a redesigned appearance to make it stronger and easier to install.

The second generation DIVERTRON features a new motor to reduce consumption, high efficiency impellers to increase performance, integrated on/off electronics to start and stop the pump in relation to demand, non-return valve for immediate priming on installation, direct access to the capacitor which allows quick and easy replacement and the mechanical seal provides greater strength and durability.

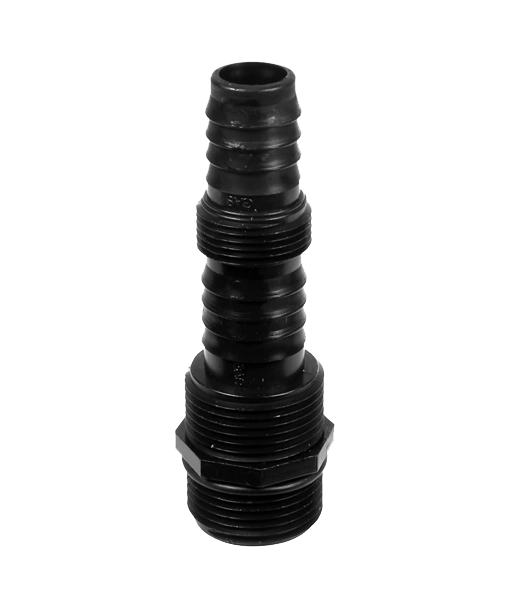

The DAB DIVERTRON is designed for clean water transfer from wells, rainwater tanks and sumps, and comes supplied with a 15-metre mains cable, the one inch threaded BSP connection comes with stepped 3/4 and one inch hose tail.

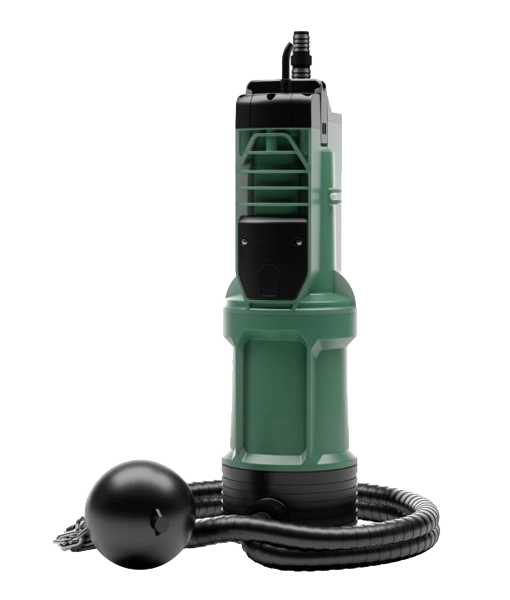

The standard DIVERTRON model comes without a float, the A version comes with attached float and the X version has a brass intake for attaching the optional Kit X with floating intake for well installations to avoid sucking up silt.

Key features

Second generation multi-impeller pump that is suitable for applications such as wells, rainwater tanks and transfer of clean water

Built-in integrated electronics designed to automatically start and stop the pump in relation to demand

Float switch version (A) prevents repeated starts and provides additional run dry protection

Newly designed motor for reduced consumption, 30% less than first generation

High efficiency impellers for increased performance

Retractable handle and separate hook for lowering and lifting pump

Dry-run protection and a built-in non-return valve

15-metre mains cable

Brass intake version (X) for well installation (optional suction Kit X)

Direct access to capacitor for easy replacement

Two-year warranty

Downloads

Specifications

Operation
Electronic on/off
Flowrate Max.
100 L/min
Head Max.
30m
Impeller Type
Multistage
Power (P2 nominal)
0.42 kW
Voltage
230V
Water Temp Max.
40°C
Discharge Size
1 inch
Pumped Medium
Clean water
Cable Length
15m
Construction
TECHNOPOLYMER
Weight
9.5 Kg
Dimensions (H x W)
488mm x 160mm
Operation
Electronic on/off
Flowrate Max.
100 L/min
Head Max.
45m
Impeller Type
Multistage
Power (P2 nominal)
0.56 kW
Voltage
230V
Water Temp Max.
40°C
Discharge Size
1 inch
Pumped Medium
Clean water
Cable Length
15m
Construction
TECHNOPOLYMER
Weight
11 Kg
Dimensions (H x W)
536mm x 160mm

Construction data

Operating range: from 1-6 m³/h with head up to 45m

Pumped liquid: clean, free of solids and abrasives, non-aggressive

Liquid temperature range: from 0 °C to +40 °C

Max. immersion depth: 12m

Motor protection class: IP 68

Motor protection rating: F

Installation: fixed or portable, vertical position

Operation: Manual or automatic with electronic ON/OFF (continuous duty with totally submerged pump)

Discharge port diameter: 1 inch

Pump maximum diameter: 160mm
