Product code: 32022 Category: Tag: View more products from...

Overview

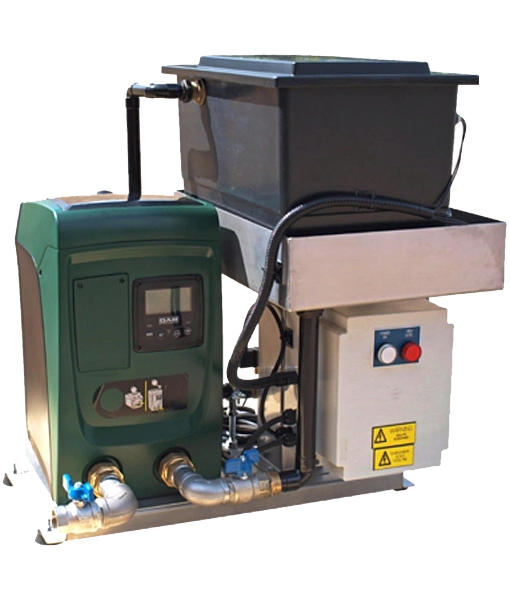

The DAB CAT 5 B-Tank and ESYBOX MINI 3 combines the best-selling DAB ESYBOX MINI 3 and a WRAS approved cold water storage tank.

The WRAS approved 18 Litre potable water storage tank with a CAT 5 class AB airgap mains water connection is coupled to an energy efficient ESYBOX MINI 3 booster pump, and features a fast fill WRAS approved solenoid filling inlet valve.

A robust stainless steel holding frame connects the system together with additional stainless steel brackets for wall mounting (supplied).

Key features

18 Litre WRAS approved potable water storage tank

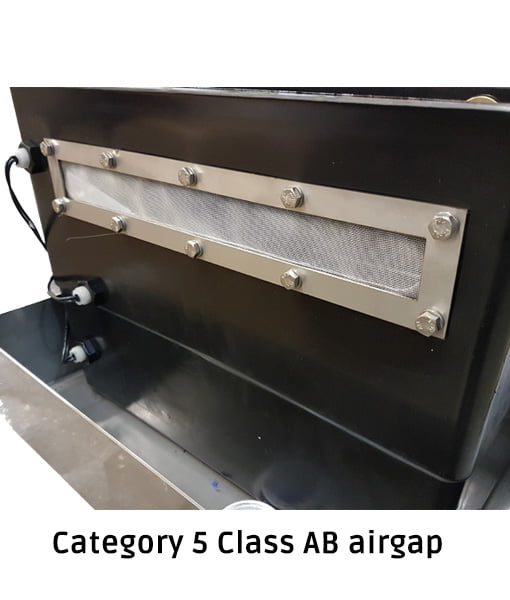

Category 5 Class AB airgap protected tank with screened weir

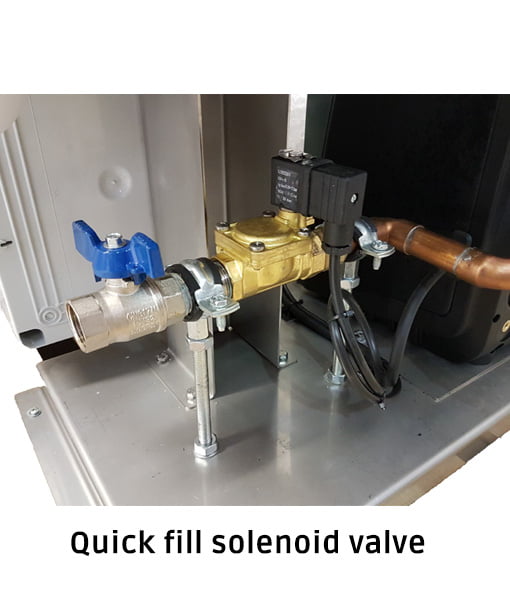

Fast fill WRAS approved solenoid filling inlet valve ¾ inch BSP

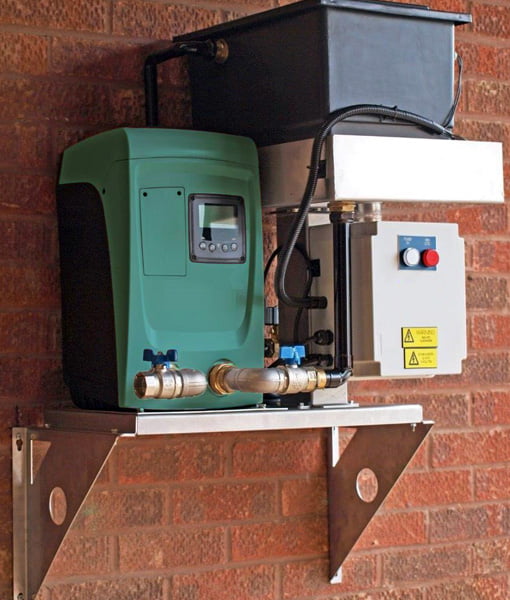

Can be floor mounted or wall mounted using the Stainless steel wall brackets included

WRAS approved energy efficient variable speed booster pump

Volt free external signal for high water level in the storage tank

Dry running protection

Frost protection

Energy monitoring facility

Anti-vibration mountings

Integrated chamber with WRAS approved expansion vessel and installer manual

Overall dimensions 600mm (W) 685mm (H) 450mm (D)

ESYBOX MINI WRAS Approval Number: 1601034

Three year warranty on ESYBOX MINI

Downloads

Technical data

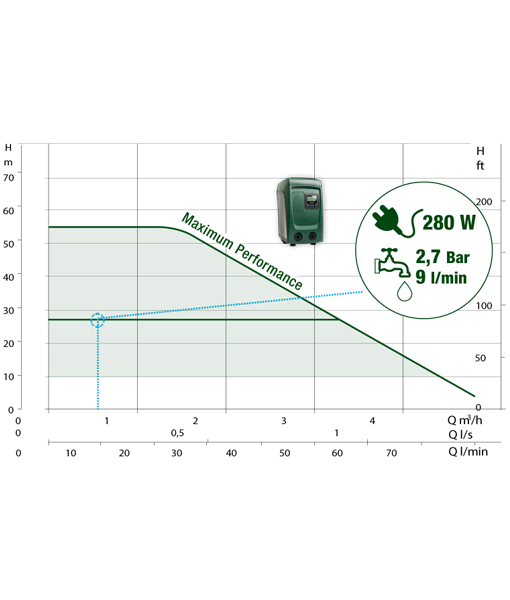

Operating range: capacity up to 80 l/min; head up to 55 m

Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral

Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C

Maximum suction depth: 8 meters

Maximum ambient temperature: +50°C

Maximum operating pressure: 7,5 bar (750 kPa)

Motor protection rating: IPX4

Insulation class: F
