Product code: 108239 Category: View more products from...

About this product

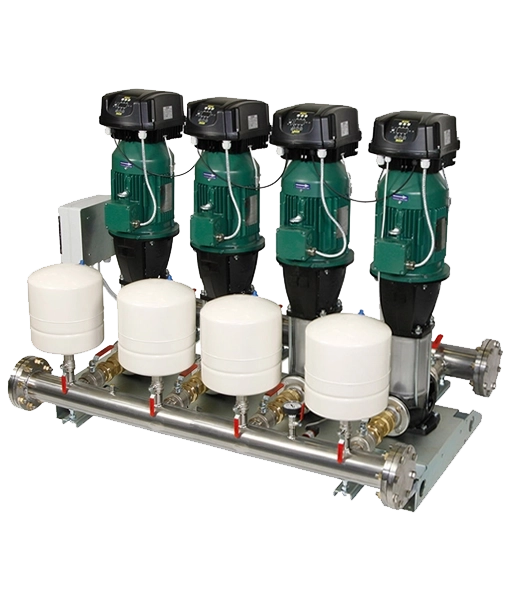

The 4 NKVE 10 / 15 / 20 MCE-P are variable pressure booster sets for residential building service and commercial building service. They can also be used in agriculture and in watering systems.

The NKVE are quadruple multi-impeller vertical centrifugal pumps coupled with MCE-P variable frequency drive installed as standard. The models with NKVE 10 S, 15 S, 20 S have the parts in contact with the liquid in AISI 304 stainless steel, the models with NKVE 32 and 45 have the pump body and upper flange in cataphorised cast iron.

The impellers, diffusers and pump casing are in AISI 304 stainless steel, with one control unit and one pressure sensor per unit and a delivery check valve and expansion vessel for each pump.

The units are supplied assembled, set and tested directly at the factory.

MCE/P Inverter

The MCE/P inverter continuously adjusts the rotation speed of the electric pump, keeping the pressure constant, even when the flow rate varies.

The other pumps, also with variable speed, are activated in cascade after the first one has reached maximum speed. Through modulation, they compensate the pressure fluctuations of the system.

For every operating cycle, it is possible to switch the restart to a different pump, therefore ensuring even use of all pumps. It is possible to set operation times for each individual pump, switching to another pump after such set times.

The ‘SP’ pressure can be adjusted by the user using the ‘+’ and ‘-‘ keys found on the MCE/P (as a rule, all the pumps are set to the same pressure value). With the new MCE/P, it is sufficient to set the data on one of the devices, and it will be automatically propagated to the other pumps of the system.

Key features

Quadruple multi-impeller vertical centrifugal pumps with MCE-P variable frequency drive installed as standard

One control unit and one pressure sensor per unit

Delivery check valve and expansion vessel for each pump

IE3 class motors comply with the highest energy efficiency standards on the water handling market

Incredible application flexibility thanks to a complete performance range and the ability to work with ambient temperatures up to 50°C

Possibility of remote control thanks to the D.Connect service (D.Connect Box supplied separately)

The NKVE 10 S, 15 S and 20 S models have all the parts in contact with the liquid in stainless steel

Internal pump body, impellers and jacket in AISI 304 steel, diffusers in technopolymer

Removable mechanical seal in silicon carbide-graphite – it is possible to remove it without removing the motor, starting from the 5.5 kW models

The NKV 32 and 45 versions have the impellers, diffusers and jacket in AISI 304 stainless steel. Pump body and sealing port in cataphorised cast iron

Downloads

Pump curves


Technical data

Flow rate minimum and maximum: From 0,5 m3/h up to 280 m3/h

Head up to: 140m

Type of pumped liquid : Clean, free of solids and abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral

Min. and max. supported liquid temperature: From +0°C to 120°C (+80°C with expansion vessel)

Maximum ambient temperature: +50°C

Maximum operating pressure bar / kPa: 16 bar / 1600 kPa

Class of protection: IP 55

Motor insulation class: F

Impeller/s material: AISI 304 stainless steel

Three phase power input: 3×230 V 50 Hz / 3×400 V 50 Hz
