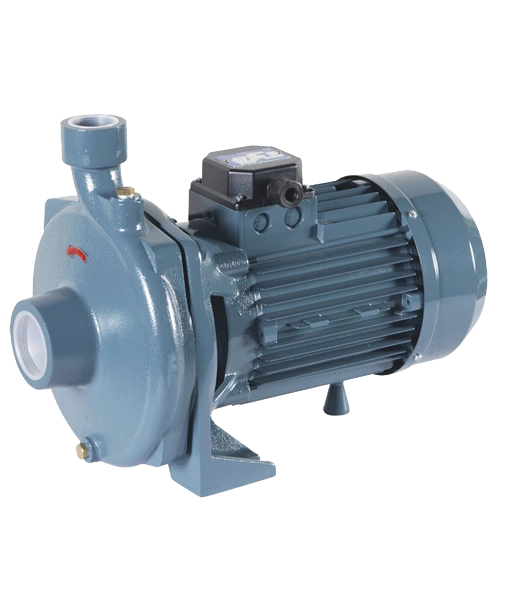

The Conforto STM / ST has a single impeller with axial suction and radial top discharge.
These pumps are suited to industrial, civil and agriculture applications, as well as water supply systems (maximum suction depth 7m) and heating. It is recommended that only chemically pure liquids, free of foreign matter, with a temperature below 80°C are pumped.
The STM / ST is a horizontal axis pump with a bronze impeller, the pump body and base support are made of G20 cast iron, with a AISI 416 stainless steel shaft and mechanical seal made of ceramic/ graphite. The impeller can also be made of Noryl with 20% glass fibre for models up to 1 HP.
The pump motor is a closed-type with external cooling fan, IP 44 safety class and F insulation. The single-phase motors are fitted with thermostat controlled safety micro switches, the three-phase motors require external capacitor protection (not supplied).
Radial impeller pumps
Axial intake and upward-facing radial delivery
Maximum flow rate 300 L/min, maximum head 56m
Medium-high discharge head with low power consumption
Suited for pumping up and distributing water in domestic water supply systems and providing water supply to high pressure water heating systems
Clean water only with no solids, temperature not higher than 80°C
Flowrate Max. |
80 L/min |
Maximum Head |
19m |
Power |
0.5 HP / 0.37 kW |
Voltage |
230v / 400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
1 inch |
Suction Size |
1 inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
9.3 Kg |
Dimensions (H x W x L) |
225mm x 170mm x 270mm |
Flowrate Max. |
80 L/min |
Maximum Head |
25.5m |
Power |
0.75 HP / 0.55 kW |
Voltage |
230v / 400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
1 inch |
Suction Size |
1 inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
12.7 Kg |
Dimensions (H x W x L) |
250mm x 185mm x 310mm |
Flowrate Max. |
100 L/min |
Maximum Head |
31m |
Power |
1.0 HP / 0.75 kW |
Voltage |
230v / 400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
1 inch |
Suction Size |
1 inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
14.4 Kg |
Dimensions (H x W x L) |
250mm x 185mm x 310mm |
Flowrate Max. |
120 L/min |
Maximum Head |
38.5m |
Power |
1.5 HP / 1.1 kW |
Voltage |
230v / 400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
1¼ inch |
Suction Size |
1 inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
19.8 Kg |
Dimensions (H x W x L) |
295mm x 225mm x 355mm |
Flowrate Max. |
140 L/min |
Maximum Head |
45.5m |
Power |
2.0 HP / 1.5 kW |
Voltage |
230v / 400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
1¼ inch |
Suction Size |
1 inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
24.4 Kg |
Dimensions (H x W x L) |
295mm x 225mm x 355mm |
Flowrate Max. |
140 L/min |
Maximum Head |
51m |
Power |
3.0 HP / 2.2 kW |
Voltage |
230v / 400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
1¼ inch |
Suction Size |
1 inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
25.2 Kg |
Dimensions (H x W x L) |
295mm x 225mm x 355mm |
Flowrate Max. |
300 L/min |
Maximum Head |
45.5m |
Power |
4.0 HP / 3.0 kW |
Voltage |
400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
2 inch |
Suction Size |
1¼ inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
35.8 Kg |
Dimensions (H x W x L) |
319mm x 250mm x 440mm |
Flowrate Max. |
300 L/min |
Maximum Head |
56m |
Power |
5.5 HP / 4.0 kW |
Voltage |
400v |
Water Temp Max. |
80°C |
Construction |
Cast Iron G20 |
Discharge Size |
2 inch |
Suction Size |
1¼ inch |
Speed |
2850 RPM |
Pumped Medium |
Clean Fluids |
Weight |
37.8 Kg |
Dimensions (H x W x L) |
319mm x 250mm x 440mm |
Horizontal axis pump with bronze impeller
Pump body and base support made of G20 cast iron
AISI 416 stainless steel shaft
Mechanical seal, made of ceramic/graphite
Electric, closed-type with external cooling fan
IP44 safety class / F insulation
The standard versions of single-phase motors are fitted with thermostat-controlled safety microswitches
The user must provide protection for three-phase pumps
