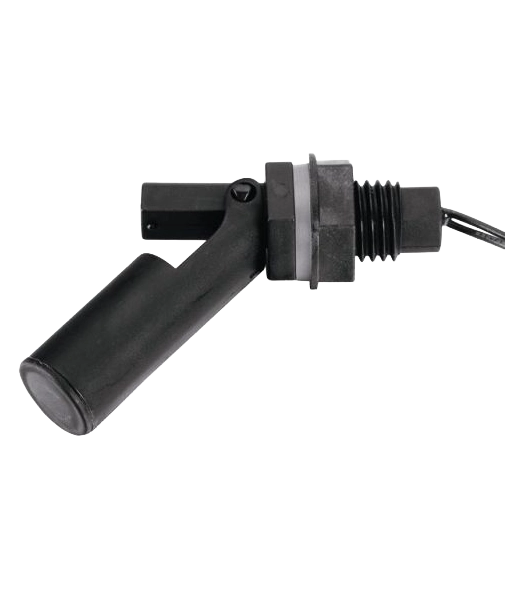

Compact Side Mount Finger Float Switch for Small Tanks (LR21)
£11.40
10 in stock
We are rated Excellent 4.9 out of 5 on TrustpilotOver 1,200 five star reviews from happy customers
Product overview
Prevent tank overflows and protect pumps from running dry in compact equipment where space is tightly constrained. This miniature horizontal finger float switch mounts cleanly through the side of your tank to deliver reliable automated level monitoring.
Constructed from chemical resistant polypropylene with an M16 mounting thread, it includes a silicone gasket and a pre-wired 300mm cable for a fast, watertight setup in temperatures up to 85°C.
Highlights
Compact side entry mount; Installs horizontally through an M16 hole to monitor levels in narrow tanks and tight machinery setups
Reversible switch function; Simply rotate the switch body 180° to easily toggle between Normally Open (NO) and Normally Closed (NC) operation
Durable polypropylene body; Resistant to water and light chemicals across an operating temperature range of -10°C to +85°C
Complete watertight kit; Supplied with a silicone sealing gasket, fixing nut, and a pre-wired 300mm PVC lead for immediate installation
Reliable electrical control; Fast reed switch reaction time (1ms) rated for switching up to 100V AC/DC
Details
Specifications
Model: LR21 MR – L5
Mounting Entry: Horizontal / Side Mount (M16 thread)
Body Material: Polypropylene (PP)
Sealing Gasket: Silicone
Cable Length & Type: 300mm PVC coated wires
Contact Rating: 10W
Max Switching Voltage: 100V DC / 100V AC
Max Switching Current: 0.5A DC
Max Carry Current: 1.0A
Breakdown Voltage: 150V DC
Contact Form: NO / NC (reversible by 180° rotation)
Operating Temperature: -10°C to +85°C
Max Operating Pressure: 0.1 MPa (1 bar)
Applications
Preventing overflows in compact water tanks and storage vessels
High level sensing in condensate drip trays and narrow sumps
Dry running protection for small water and chemical transfer pumps
Automated fluid level alarms and solenoid control systems
Operation
Monitoring liquid levels in small tanks, sumps, or machinery enclosures can be difficult when space is limited. The LR21 horizontal finger float switch mounts through the side wall of your tank to provide precise high or low level detection without obstructing internal components.
Operating via a clean reed switch mechanism, the float arm rises and falls with the water level to close or open the electrical circuit. It comes complete with an M16 thread, fixing nut, and sealing washer to ensure a reliable, leak-free installation.
