Key features
Suitable for domestic water boosting
Quiet operation – noise level below 50 dB(A)
Constant pressure – Integrated frequency converter
Compact – 240mm (H) 160mm (W) 440mm (L)
Built-in pressure vessel
IE4 high efficiency asynchronous motor
Motor power control

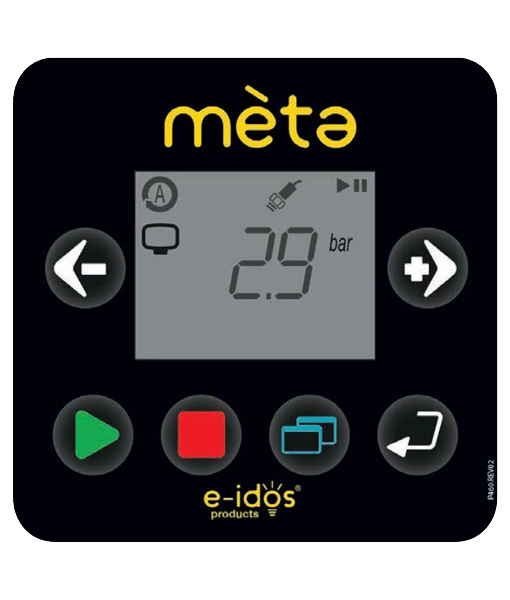

Programmable re-start pressure
No hydraulic losses due to the measuring devices
Voltage and current control
Monitoring of maximum starting current
Continuous duty
⚠ Must not be connected to incoming mains supply, break tank required
Downloads
Specifications (.pdf)
Manual (.pdf)
Technical data
Operational range: flow up to 140 l/min; head up to 55m
Liquids: clean water (no solids)
Liquid temp: from 0°C to +35°C
Factory set point: 3.5 Bar
Max. ambient temp: +40°C
Max. operating pressure: 8 bar (800kPa)
IP protection: IPX4
Insulation class: F
Break tanks
Break tanks are used to ensure that the necessary amount of water is available to supply a system during periods of normal use and peak demand.
UK water regulations limit the water flow drawn from the mains supply to a maximum of 12 litres per minute, therefore you are not permitted to install a booster sets or other pump directly onto an incoming mains water supply if the flow will exceed 12 litres per minute. Break tanks are therefore a necessity in all Calpeda Mèta installations.
A suitable break tank will need to be sourced separately.
