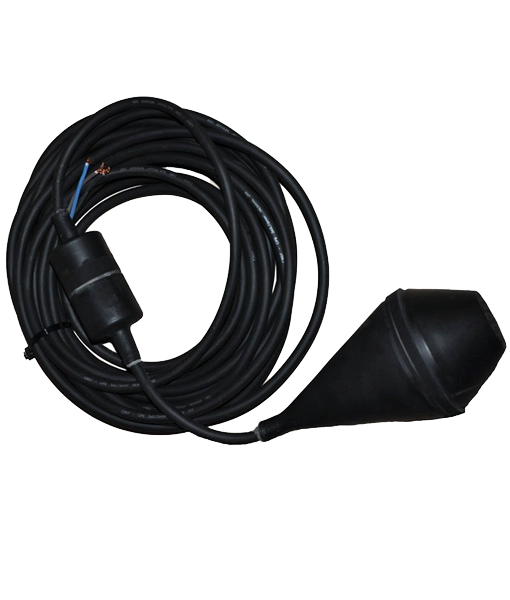

Atex Approved IWF Float Switch | Rubber Cable with Integral Weight

Other customers bought
IWF Float Switch - Atex Approved, Rubber Cable
Stainless Steel Float Switch Bracket
This item: Atex Approved IWF Float Switch | Rubber Cable with Integral Weight £126 – £156 £126 – £156

Bracket

Stainless Steel Float Switch Bracket£28.50

69 in stock

We are rated Excellent 4.9 out of 5 on TrustpilotOver 1,200 five star reviews from happy customers

Payment methods we accept

Product overview

Our Atex Approved IWF Float Switch features a low voltage/low current microswitch and the outside of the float and weight cover are coated in Hypalon* CSP Synthetic rubber to meet the requirements of intrinsically safe systems. The one-piece design eliminates the need for external weights and reduces installation time. The robust housing is specifically chosen to provide a long trouble-free service life under harsh conditions in pump stations and treatment tanks.

These Atex Approved IWF Float Switches (Certificate SIRA 04ATEX2187) may be used in zones 1 and 2 with flammable gases and vapours with apparatus groups IIA, IIB, & IIC and with temperature classes T1, T2, T3, T4, T5 & T6.

*Hypalon Du Pont de Nemours, Wilmington, Delaware

Details

Low voltage/low current microswitch compatible with the voltage and current requirements of intrinsically safe systems

Max Working Voltage Ui 30V / Max Working Current Ii 100mA

Hypalon* CSP Synthetic rubber coating provides high chemical resistance

Float size 91 x 174mm

Compressive strength of 482 KN/m2

Min 330mm operating height / Max depth of 20m

Min Temperature -20°C / Max working temperature 70°C

Can be used on single and three-phase systems

Three-core CPE (chlorinated polyethylene) synthetic rubber cable (10m or 20m) with integral weight

Intrinsically safe for zone 1 to EN50014, EN50020 and checked yearly against EN60079-0 & EN60079-11

Depending on the application, the guide below indicates which wires would need to be connected to your pump, control panel or high-level alarm.

IWF Float Switch Activation
IWF Float Switch Wiring
