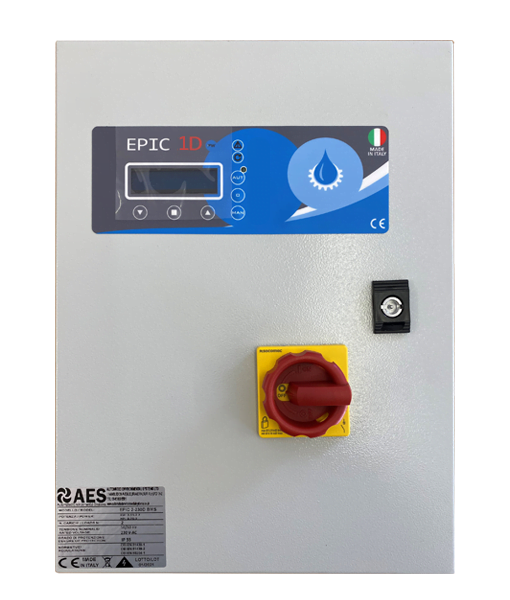

AES EPIC 1D Single Pump DOL Control Panel (Metal)
We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers
Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri
Product code: 39320
Category: Pump Control Panels
Tag: pump-control-panel
View more products from... Automated Environmental Systems
Overview
Designed for complete versatility, the AES EPIC 1D is an intelligent, direct on line electronic pump control panel that automatically calibrates to your specific system data. This smart setup eliminates manual programming, allowing the exact same unit to be deployed instantly across a massive range of clean water and wastewater configurations.
Details
Applications
The AES EPIC 1D is engineered to serve as a universal control solution across commercial, industrial, and residential pumping systems. By integrating advanced digital monitoring with rugged physical architecture, it replaces traditional, single application panels with an adaptable, intelligent platform.
Universal Compatibility
This direct on line panel is fully compatible with single-phase 230V or three-phase 400V submersible and surface-mounted pumps. It functions seamlessly alongside standard automation hardware, including single or multiple float switches, pressure switches, ultrasonic level probes, and 4-20 mA pressure transducers.
Advanced Motor Protection
To prevent premature motor failure, the internal microprocessor continuously tracks electrical signatures. The system delivers automatic protection against dry running (via undercurrent or external float/probe sensor), motor overload (overcurrent), phase failure, voltage drops, and excessive start-up cycles. Dedicated terminals for motor Klixon switches ensure real time thermal protection monitoring.
Industrial Automation & BMS Integration
Designed for modern building automation, the panel includes programmable run timers, anti-seizure cycling routines, and start-up delay parameters. A dedicated, volt-free contact output allows direct connection to Building Management Systems (BMS) for remote fault signalling and status tracking.
Connectivity
Link an AES GSM SMS Text Dialler to the integrated BMS output for instant remote monitoring. If a fault occurs, the system automatically sends real-time text alerts, emails, and voice calls to an unlimited number of recipients.
Get immediate, real-time notifications for:
Pumps running or pumps tripped
Klixon motor overheating alerts
High-level and low-level alarm warnings
Protection
A Direct On Line (DOL) panel is the most reliable way to start and protect a pump motor. Instead of slowly ramping up the power, a DOL panel connects the pump directly to the full electrical supply the moment it switches on.
If a pipe blocks, or the water supply runs dry, a pump will just keep running until it burns itself out. The AES EPIC 1D acts as the brain and safety guard for your system. It constantly monitors the electricity flowing to your pump. If it detects a spike in current, a drop in voltage, or signs of dry running, it instantly cuts the power, saving you from a pump failure and an expensive replacement bill.
Highlights
Automatically learns and calibrates your specific pump data to set exact overloads without manual input
Works with standard float switches, pressure switches, and probes, alongside an integrated 4-20 mA input for precision transducer level control
Actively guards against dry running, dangerous current spikes, voltage drops, phase failure, and overheating (via Klixon connection)
Supports single phase pumps up to 2.2kW (3HP) and three phase pumps up to 15kW (20HP)
Features a dedicated, volt-free BMS output for seamless building management system automation
Specifications
Technical
Power supply input 1~ 50/60Hz 230V±10%
Power supply input 3~ 50/60Hz 400V±10%
Mode selection buttons (manual spring return)
Green LED for motor running indication
Blue LED for mains supply indication (ON)
Safety device reset button
Auxiliary circuit protection fuses
Main disconnect switch with door lock
Provision for start-up capacitors (single phase versions)
Metal box – 40cm x 30cm x 20cm (excluding isolator switch)
IP55 protection rating (IP65 available on request)
Ambient temperature: -5/+40 °C
Relative humidity 50% at 40 °C (condensate free)
Ratings
| 230D | 2A to 16A |
| 400/10D | 2A to 15A |
| 400/20D | 16A to 24A |
| 400/15D | 16A to 30A |
Inputs
Probes level control input x 1
float switch inputs x 4
4÷20 mA input for pressure transducer or level sensor
Klixon motor protection input
Water in oil chamber protection input
Outputs
Acoustic alarm
External Beacon
Free contact alarm output
12V alarm output
230V alarm output
BSM output
