Key features

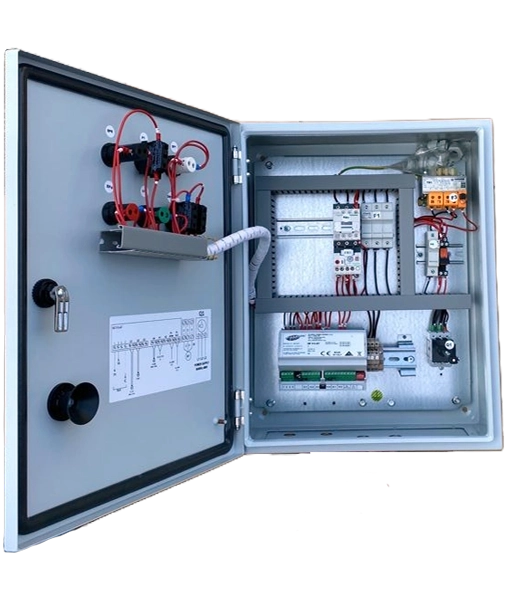

Single electromechanical pump control panel for clear and waste water applications
Single (M) or three phase (T) panel suitable for pumps from 1.1 – 7.5kW and 1.5 – 10.0HP (1.6-8A or 6-16A)
Metal enclosure (500mm x 400mm x 250mm)
Min and max voltage control with delay and automatic reset
Motor protection fuses
Auxiliary circuit protection fuses
Transformer for auxiliary circuit
Klixon motor protection
Works with float switches (max level), pressure switches and probes (min level)
Self holding
AUTO-0-MAN selector (stable)
Mains disconnect switch with door lock
Cable glands
Downloads
Specifications (.pdf)
Manual (.pdf)
Wiring Diagrams (.pdf)
Technical data
Power supply input 1 ~ 50/60Hz 230V±10% (230V)
Power supply input 3 ~ 50/60Hz 400V±10% (400V)
AUTO-0-MAN mode selection buttons (stable)
Motor running green indicator light
Overload (tripped) red light indicator
Main disconnect switch with door lock
N.1 Contactor
N.1 Thermal protection relay
Connection terminals
Transformer for auxiliary circuit
Auxiliary circuit protection fuses
Motor protection fuses
Cable Glands
IP55 protection rating
Ambient temperature: -5/+40 °C
Relative humidity 50% at 40 °C (condensate free)
Connections
N.1 x Probes level control
N.4 x Float switch/pressure switch
N.1 x Klixon motor protection
N.1 x 24V alarm
N.1 x NO free contact
