ABS Sanimax R202 Wastewater Lifting Station
Product overview

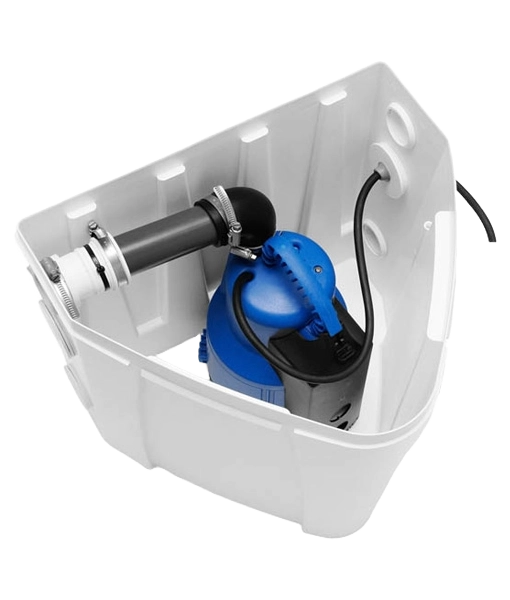

The ABS Sanimax R202 is a compact floor level lifting station fitted with a Robusta submersible pump. It automatically removes domestic waste water up to 40°C from sinks, showers, baths and washing machines installed below the sewer level or where connection to existing pipework is not in the location of the bathroom.
Highlights
The compact triangular polypropylene tank optimises space, fitting neatly under a sink or in tight utility areas
An integrated float switch and Robusta pump provide automatic level control for efficient wastewater removal
Seven ready prepared ports allow flexible connection to domestic appliances, sinks, showers, and discharge pipework
An odour-tight lid with a charcoal filter prevents unpleasant smells and keeps installation clean and hygienic
Supplied as a plug-in unit with an integrated non-return valve for quick setup out of the box
Can be used for draining water from a bath, sink, shower or washing machine, NOT suitable for use with a toilet
Details
Specifications
Model |
Sanimax R202 |
Operation |
Automatic (integral float) |
Flowrate Max. |
9 m³/h |
Head Max. |
6m |
Power |
0.36 kW |
Voltage |
230V |
Water Level Min. |
55mm |
Water Temp Max. |
40°C |
Discharge Size |
max. 50mm |
Free Passage |
10mm |
Pumped Medium |
Water & small particles up to 10mm |
Cable Length |
3m / 10m |
Construction |
Polypropylene |
Weight |
6.75 Kg (pump) |
Dimensions (H x W x L) |
390mm x 345mm x 400mm |
Technical
Tank: Polypropylene
Capacity: 28 litres
Pump housing: Polypropylene
Motor housing: Stainless steel 1.4301
Rotor shaft: Stainless steel 1.4057
Impeller: Polyamide
Seals: Neoprene
On height 85mm | off height 55mm
Pumped volume 1.8L | Residual volume 3.9L
