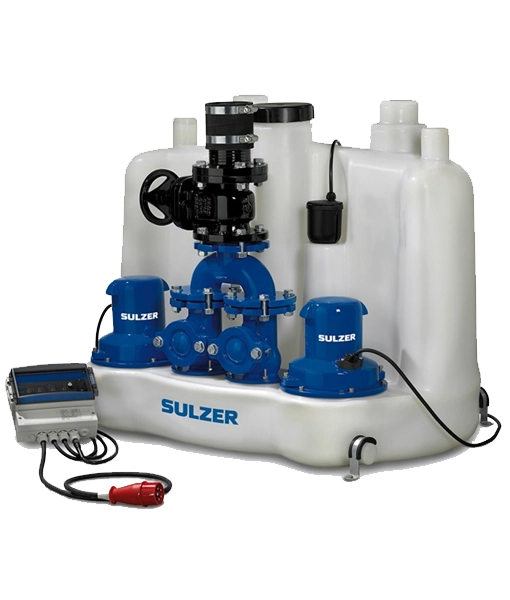

ABS Sanimat 2002 Sewage Lifting Station
ABS Sanimat 2002 Sewage Lifting Station
Product code: 42829 Category: Tag:

Overview

The ABS Sanimat 2002 is a flood-proof double lifting station for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1.

It is ideal for effective sewage removal from apartments as well as large buildings, and for both new and renovated structures.

The Sanimat 2002 provides problem-free pumping of wastewater and sewage from areas below the sewer level, the Sanimat features a dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm.

The compact dimensions allow passage through a standard door opening and the unit is suited to locations where the diameter of the discharge line is restricted.

Key features

Ready for installation; Compact, robust synthetic (PE) collection tank

Easily transported and installed with compact dimensions that allow passage through a standard door opening

Problem-free pumping of sewage and wastewater containing fecal matter from areas below the sewer level

Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm

Integrated valve system featuring ball-type, non-return valve

Supplied as standard with pumps, non-return valves, and control panel with automatic level control and alarm

Downloads

Construction data

Plug-in unit with CEE plug (400 V) and phase sequence changeover facility

Discharge flange DN 80, plus flanged socket with 4 inch sleeve and clips (for discharge pipe DN 80/100)

Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both fecal and fecal-free sewage

Corrosion-resistant, gas and odour-tight polyethylene tank, in accordance with EN 12050-1

Maximum capacity 55m³/h

Maximum head 18m

Standard 4m cable to Control Unit
