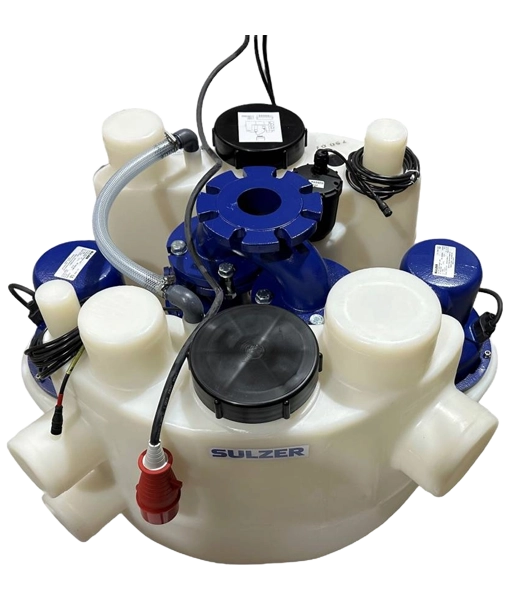

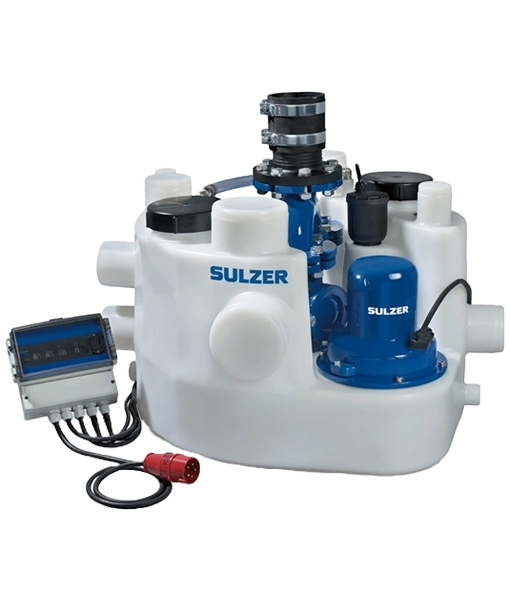

ABS Sanimat 1002 Sewage Lifting Station
ABS Sanimat 1002 Sewage Lifting Station
ABS Sanimat 1002 Sewage Lifting Station
ABS Sanimat 1002 Sewage Lifting Station
Product code: 42820 Category: Tag:

Overview

The ABS Sanimat 1002 is a flood-proof double lifting station for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1.

It is ideal for effective sewage removal from apartments as well as large buildings, and for both new and renovated structures.

The Sanimat 1002 provides problem-free pumping of wastewater and sewage from areas below the sewer level, the Sanimat features a dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm.

The compact dimensions allow passage through a standard door opening and the unit is suited to locations where the diameter of the discharge line is restricted.

Key features

Ready for installation; robust, compact tank for buildings

Easily transported and installed with compact dimensions that allow passage through a standard door opening

Problem-free pumping of sewage and wastewater containing fecal matter from areas below the sewer level

Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both fecal and fecal-free sewage

Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm

Integrated valve system featuring ball-type, non-return valve

Very quiet running thanks to slow-running four-pole motor

Downloads

Construction data

Plug-in unit with CEE plug (400 V) and phase sequence changeover facility

Discharge flange DN 80, plus flanged socket with 4 inch sleeve and clips (for discharge pipe DN 80/100)

Corrosion-resistant, gas- and odour-tight polyethylene tank, in accordance with EN 12050-1

Maximum capacity 55m³/h

Maximum head 9.5m

Standard 4m cable to Control Unit

Supplied as standard with pumps, non-return valves, and control panel with automatic level control and alarm
