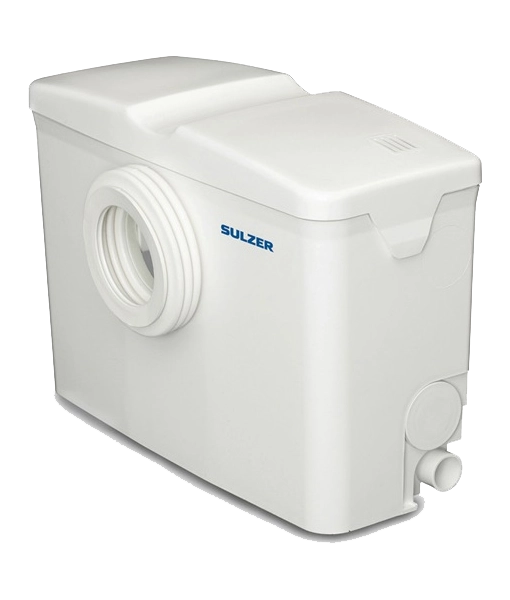

The ABS Piranhamat lifting station compact pumping station for direct connection of one toilet in accordance with EN 12050-3. The Piranhamat 100 /120 comes ready to connect, with a gas and odour-tight tank, and can also be connected to an additional sink or shower.

The powerful Piranha grinder pump has a cutting system that will cope with sanitary articles that might be accidentally flushed down the toilet, the tank is corrosion resistant including all common toilet cleaning fluids.

The Piranhamat is maintenance friendly with an easy access lid, a carbon filter reduces odours. The unit features automatic level control and an alarm, in the event of a power failure the unit can be emptied by driving the rotor shaft with an electric drill.

Key features

Compact unit ready to plug in and suitable for direct euro toilet connection

With Sulzer patented Piranha cutting system for pumping faecal matter and also sanitary articles that might be accidently dropped into the toilet

Automatic level control and alarm

Attractive corrosion-resistant synthetic tank

Maintenance-friendly unit with easy access lid (no screws)

Carbon filter fitted to reduce odours

Non-return valve and 2m cable with plug supplied as standard

Downloads

Construction data

Modern, gas and odour tight white plastic tank of high quality synthetic material, resistant to all common toilet cleaning fluids

Ready for use, and fitted with a powerful Piranha grinder pump which is controlled automatically by the integral level control system

Push-on, self-sealing connection for a toilet at the rear of the unit, and push-in connection ports for one wash-hand basin, one shower and one bidet at the sides. The discharge connection can be made on either side of the unit and means that the discharge pipe can exit left or right as is found most suitable for the particular installation

Equipped with an electronic control unit with high level alarm (Piranhamat 120 with additional alarm buzzer)

Non-return flap valve on the discharge line

Maximum allowable temperature of the medium is 40 °C; or up to 60 °C for a maximum of five minutes
