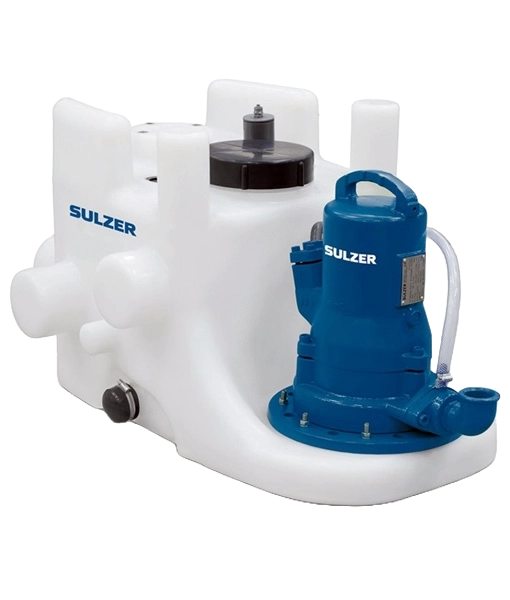

ABS Piranhamat 701 Sewage Lifting Station
ABS Piranhamat 701 Sewage Lifting Station
Product code: 27544 Category: Tag:

Overview

The ABS Piranhamat 701 is a flood-proof lifting station for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1.

It provides reliable and economical discharge of wastewater under pressure using small-diameter pipes.

The Piranhamat 701 features either a single or three-phase Piranha submersible grinder pump for problem-free pumping of wastewater under pressure in pipelines from DN32 (1¼ inch).

The compact dimensions allow passage through a standard door opening and the unit is suited to locations where the diameter of the discharge line is restricted.

Key features

Ready for installation; robust, compact tank for buildings

Maximum capacity 9m³/h, maximum head 30m

Easily transported and installed with compact dimensions that allow passage through a standard door opening

Fitted with Piranha submersible grinder pump for problem-free pumping of sewage and wastewater containing faecal matter in pipe lines from 1¼ inch diameter (DN 32)

Shredding system featuring a spiral bottom plate containing a stationary cutter ring with cutting edges and a shredding rotor located below the impeller, for blockage-free operation

Shaft between motor and hydraulic section sealed by a single silicon carbide mechanical seal, independent of direction of rotation, resistant to temperature shock and to dry running

Downloads

Construction data

Oil-lubricated lip seal on motor side. Motor shaft mounted in lubricated-for-life, maintenance-free ball bearings

Piranhamat 701: Nine horizontal inlet ports (6 x DN 100, 3 x DN 40) and four vertical (2 x DN 70, 2 x DN 40). DN 40 is suitable for the connection of a hand membrane pump

Synthetic, corrosion-resistant, gas- and odour-tight tank, in accordance with EN 12050-1

Single or three-phase power input

Standard 4m cable to Control Unit

Supplied as standard with pump, accessories include non-return valves, control panel with automatic level control and alarm
