2 inch Guide Rail Kit | Auto-Coupling Pedestal for Submersible Pumps
£210 £175 + vat
149 in stock online
We are rated Excellent on TrustpilotOver 1,100 five star reviews from happy customers
Next working day delivery availableIn-stock items only, order by 2pm Mon to Fri
Product code: 16031
Category: Pumping Station Accessories
Tags: guide rail kit, pedestal kit
View more products from... AF Pumps
Overview
The premium two inch guide rail kit provides a heavy duty, auto coupling solution engineered specifically for handling submersible wastewater and sewage pumps within deep wet wells or below ground pumping stations.
Designed to simplify maintenance routines and improve site safety, this pedestal system allows operators to raise or lower pumps without disconnecting pipework or entering confined chamber spaces.
Details
Design
The precision machined cast iron components guide the pump down the twin rail tracks, anchoring it securely into a watertight compression seal at the base via a heavy duty mechanical connection.
Every components within the heavy duty assembly is designed to withstand the aggressive environmental conditions within domestic sewage collection sumps, industrial effluent treatment tanks, and commercial drainage systems.
Finished with a black epoxy coating to resist corrosion and chemical breakdown, the pedestal base ensures a stable foundation that resists high transverse pressures during pump cycles.
By eliminating the need to construct stepped concrete floors within the sump, the universal base mounting layout keeps the pump suction intake at the optimal height for clearing sediment and suspended solids.

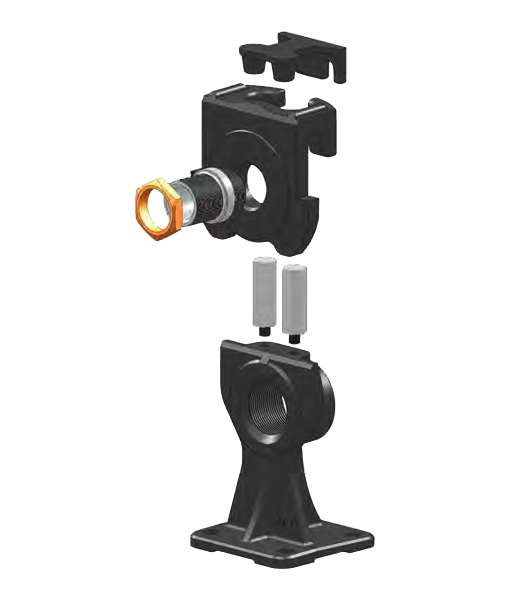

Included kit

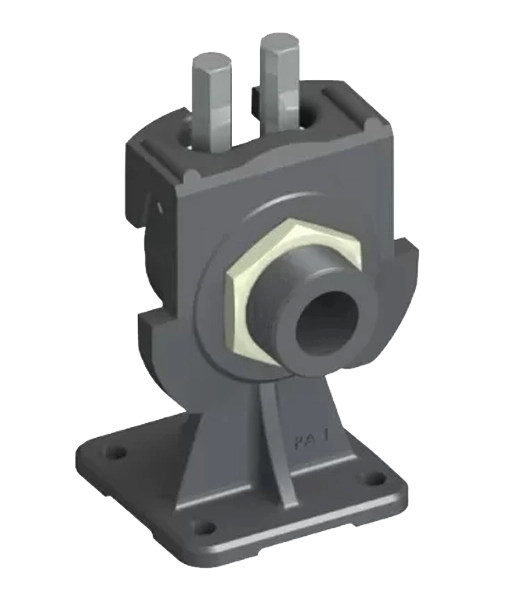

Pedestal base (coupling seat) with 2 x pin guide pipes
pump claw (coupling adaptor) with lock nut
Top bracket (upper guide support)
Please note that the kit does not include any fixings or the guide rail tubes
Highlights
Precision manufactured from robust high tensile cast iron and treated with a protective black epoxy finish to prevent surface scaling and chemical corrosion in heavy wastewater environments
Features a standardised vertical discharge flange layout designed for integration with universal 2 inch threaded pump discharge
The complete auto coupling mechanism facilitates rapid mechanical isolation, allowing busy groundworks engineers to pull submersible pumps for cleaning without dismantling pipe joints
Designed for straightforward site integration using standard ¾ inch diameter steel guide rail tubes to form a perfectly balanced tracking alignment from the chamber cover down to the sump floor
Maintains full free passage throughput across the discharge port to eliminate fluid resistance and minimise the risk of fibrous materials wrapping around the pump base connection
Specifications
Pump thread |
2 inch |
Guide Rail |
¾ inch x 2 (N/S) |
Material |
Cast Iron |
Discharge |
2 inch free passage |
