Product Description

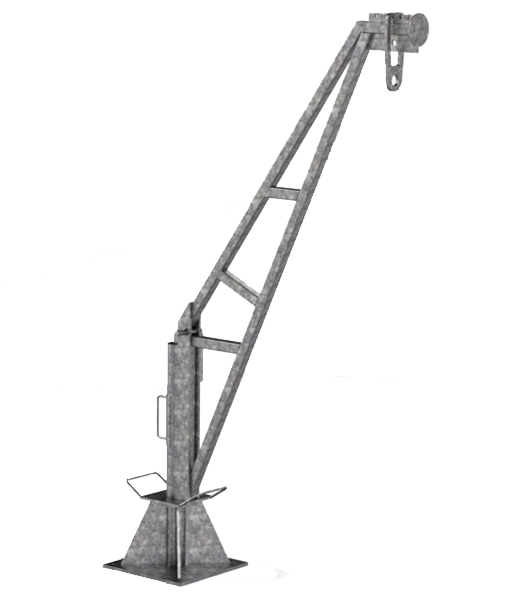

Our galvanised lean over davits have a Safe Working Load (SWL) of up to 1000KG and have been designed as a transportable device, the steel lean over davit is often used in locations where it can be stored on site.
Available in several reach options from 760mm to 1200mm and SWL from 500KG to 1000KG.
The lean over davit is fitted with a castellated offset suspension point, allowing the chain block to be adjusted from the central point of lift.
The galvanised lean over davit, is a three piece design with a choice of 65mm and 75mm socket pin diameters. Manufactured from mild steel and galvanised to BS EN 1461.
Total weight of the lean over davit from 71KG to 74KG.
Downloads
500KG / 760mm Specifications (.pdf)
500KG / 1000mm Specifications (.pdf)
500KG / 1200mm Specifications (.pdf)
1000KG / 1070mm Specifications (.pdf)
Product specifications
500KG / 760mm
Radius |
760mm |
Height |
1900mm |
Post Diameter |
65mm |
Safe Working Load |
500Kg |
Material |
Galvanised Mild Steel |
Weight |
71Kg |
500KG / 1000mm
Radius |
1000mm |
Height |
1930mm |
Post Diameter |
65mm |
Safe Working Load |
500Kg |
Material |
Galvanised Mild Steel |
Weight |
72Kg |
500KG / 1200mm
Radius |
1200mm |
Height |
1930mm |
Post Diameter |
65mm |
Safe Working Load |
500Kg |
Material |
Galvanised Mild Steel |
Weight |
74Kg |
1000KG / 1070mm
Radius |
1070mm |
Height |
2250mm |
Post Diameter |
65mm |
Safe Working Load |
500Kg |
Material |
Galvanised Mild Steel |
Weight |
74Kg |
